Chapter 20:  Neuromuscular Blockers

Neuromuscular Blocking Drugs

Skeletal Muscle Relaxants

• Spasticity-characteristics

  • Increased in tonic stretch reflexes

  • Increased flexor muscle spasm

  • Muscle weakness

• Clinical conditions associated with spasticity:  Cerebral palsy, Multiple sclerosis, Stroke

•  Clinical spasticity -- mechanisms:

  • Reflex arc involvement

  • Higher center involvement ("upper motor neuron disease") affects descending pathways leading to alpha motoneurons hyperexcitability

• Mechanisms of drug action {diminishing spasticity}

  • Alteration in stretch reflex arc

  • Attenuation of excitation-contraction coupling

• Diazepam (Valium)

  •  Enhances CNS GABA inhibitory activity; active at most (all) GABA_A synapses.

  •  Anti-spasmolytic effect in part due to action in the spinal cord {effective in patients with cord transection}

  •  Tends to be sedating

• Baclofen (Lioresal)

  • Mechanism: GABA agonist at GABA_B receptors

    • Receptor activation causes increased K⁺ conductance (hyperpolarization) in the brain and spinal cord

    • Spinal cord effects probably occur following increased presynaptic inhibition which reduces transmitter released by reducing calcium influx.

  • Similar anti-spasticity compared to diazepam (Valium) but with less sedation

  • Pharmacokinetics:

    • Orally active;well absorbed

    • half-life: 3-4 hours

  •  Adverse Effects:

    • drowsiness; increased seizure activity in patients with epilepsy

  • Intrathecal Baclofen (Lioresal) use:

    • Management of severe spasticity/pain when nonresponsive to medication by other routes of administration.

      •  Few peripheral symptoms; higher concentrations may be used

      •  Partial tolerance may develop

      •  Major disadvantage: maintaining the integrity of the delivery catheter.

      •  Advantage: significant improvement of quality of life in some patients

• Tizanidine (Zanaflex)

  • Overview

    • Tizanidine (Zanaflex) is related to clonidine (Catapres)

    • Enhances both pre-& postsynaptic inhibition in the spinal cord

      • Also inhibits nociceptive transmission (dorsal horn)

  • Clinical Use

    • Probably a significant benefit for patients with spasticity (several types)

    • Comparable efficacy compared to: diazepam (Valium), baclofen (Lioresal), and dantrolene (Dantrium)

    • Dosage must be carefully titrated for each patient

  • . Adverse Effects:

    • drowsiness, dry mouth, asthenia, hypotension

• Dantrolene (Dantrium)

  • Overview

    •  Unique mechanism -- acts outside the CNS

    •  Interferes with muscle fiber excitation-contraction coupling

  •  Mechanism of action

    • Blockade of sarcoplasmic reticulum calcium channel {ryanodine channel}

    • Reduced calcium concentration diminishes actin-myosin interaction

    • Motor units contracting more rapidly are more sensitive to dantrolene (Dantrium)

      • Cardiac muscle & smooth muscle are only slightly affected {different calcium release mechanism}

  • Pharmacokinetics

    • bioavailability: about 33% of oral dose absorbed

  •  Adverse Effects:

    • Muscle weakness

    • Sedation

    • Hepatitis (occasional)

  • Other Clinical Use

    •  Malignant hyperthermia, is associated with hereditary abnormality in sarcoplasmic reticulum calcium sequestration affecting probably, in some cases affecting the ryanodine receptor (calcium channel in the SR) is triggered by:

      •  General anesthesia

      •  Neuromuscular blocking drugs

    • Clinical Presentations:

      • Significant muscle contractions

      • Sudden and prolonged calcium release

      • Increased lactic acid production

      • Increased body temperature

    • Dantrolene (Dantrium) reduces calcium release

      •  Other interventions are required to reduce body temperature and manage acidosis

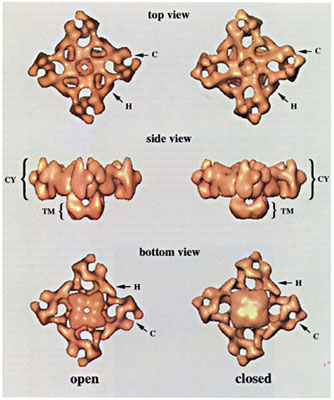

• "The open and closed states of the Ca2⁺-release channel are shown side by side in three different views: top, side and bottom. Important details are marked: the clamp-shaped domain (C), the handle (H) which connects the clamp shaped domain to the central part of the cytoplasmic side (CY) of the tetramer. The putative transmembrane (TM) part of the assembly resembles the stem of the mushroom-shaped protein. In the open-state reconstruction the transmembrane region of the channel appears open towards the SR, whereas in the closed state a central opening is not seen in this region. As is clearly visible in these images, the clamp-shaped domains (C) are open in the open-state reconstruction whereas the fingers of the clamps touch in the closed state reconstruction." From Orlova, E. et al. Nature Structural Biology v3(6) 547-52. 1996.

• Drugs for Acute Local Spasm

  • Sedatives acting at the brain stem or spinal cord level include:

    1.  Carisoprodol (Soma, Rela)

    2.  Chlorphenesin (Maolate)

    3.  Chlorzoxazone (Paraflex,generic)

    4.  Cyclobenzaprine (Flexeril)-- not useful for muscle spasms secondary to spinal cord injury or cerebral palsy; strong antimuscarinic and sedative effects

    5.  Metaxalone (Skelaxin)

    6.  Methocarbamol (Robaxin)

    7.  Orphenadrine (Norflex)

Katzung, B.G.., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449;White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996

.return to Table of Contents

• Chemistry/Structure

  • NMJ blockers: Structural similarity to acetylcholine

    •  Succinylcholine (Anectine) {depolarizing blocker, SCh} -- two linked acetylcholine molecules

    •  Nondepolarizing agents also contain a "double-acetylcholine" form; however this form is hidden by ring systems-- e.g. pancuronium (Pavulon)

    •  Contains 1-2 quaternary nitrogens which result  in limited lipid-solubility {limited CNS penetration}

    • Major classes of nondepolarizing blocking drugs:

      Isoquinoline

      •  Isoquinoline derivatives

        •  Tubocurarine

        •  Atracurium (Tracrium)

        •  Doxacurium (Nuromax)

        •  Mivacurium (Mivacron)

      •  Steroid derivatives -- e.g.

        •  Pancuronium (Pavulon)

        •  Vecuronium (Norcuron)

        •  Pipecuronium (Arduan)

        •  Rocuronium (Zemuron)

Pharmacokinetics: Neuromuscular Blocking Drugs

Nondepolarizing agents --Elimination characteristics

• Fast initial distribution; slower elimination

• Limited volume of distribution {expected for highly ionized agents -- tending not to cross readily biological membranes}

• Route of elimination-- important determinant of duration of action

  •  Renal elimination:

    •  Long half lives; long durations of action (> 35 min)

  •  Hepatic elimination:

    •  Shorter half lives: (< 30 min)

Isoquinoline derivatives

Drug	Elimination mechanism	Duration of action (minutes)
Atracurium (Tracrium)	ester hydrolysis (enzymatic & nonenzymatic)	20-35
Cisatracurium (Nimbex)	spontaneous (Hoffmann elimination)	25-44
Doxacurium (Nuromax)	renal	> 35
Metocurine (Metubine Iodide)	renal (40%)	> 35
Mivacurium (Mivacron)	plasma pseudocholinesterase	10-20
Tubocurarine	renal (40%)	> 35



Steroid Derivatives

Drug	Elimination mechanism	Duration of action (minutes)
Pancuronium (Pavulon)	renal (80%)	> 35
Pipecuronium (Arduan)	renal (60%) & hepatic	> 35
Rocuronium (Zemuron)	hepatic (75-90%) & renal	20-35
Cecuronium (Norcuron)	hepatic (75-90%) & renal	20-35



Other Drugs of Interest

Drug	Elimination mechanism	Duration of action (minutes)
gallamine (Flaxedil)	renal (100%)	> 35
succinylcholine (Anectine)	plasma pseudocholinesterase	< 8

*-- adapted from Table 27-1: Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p. 438

Introductory comments about specific Nondepolarizing agents

• Overview: Intermediate-duration agents (e.g. vecuronium (Norcuron) & rocuronium (Zemuron)) --mainly dependent on hepatic metabolism and biliary excretion for elimination:

  •  Intermediate-duration drugs are most commonly used clinically {compared to longer acting renal-excreted drugs}

• Vecuronium (Norcuron) vs. pancuronium (Pavulon):

  •  Similar steroid nucleus -- one contains a tertiary rather than quaternary nitrogen

  •  Vecuronium (Norcuron) -- shorter duration of action; minimal cardiovascular effects; 85% hepatic metabolism/elimination

NMJ blockers: Steroid derivatives,  Vecuronium (Norcuron)

NMJ blockers: Steroid derivatives,  Pancuronium (Pavulon)

• Rocuronium (Zemuron)

  •  Most rapid onset among nondepolarizing blockers

  •  A drug of choice for rapid-sequence anesthesia induction and intubation (when succinylcholine is contraindicated or clinical circumstances suggest that it not be used)

• Atracurium (Tracrium) (isoquinoline derivative) -- similar characteristics as vecuronium (Norcuron)

  •  Hoffman elimination inactivation {spontaneous breakdown}

  •  Atracurium (Tracrium) breakdown product --laudanosine may accumulate due to very slow hepatic metabolism and upon crossing into the brain may cause seizures

    •  Seizures occur at laudanosine concentrations above that obtained during surgical procedures; however long-term use of atracurium (Tracrium) within the intensive care setting may result in concentration sufficient to induce seizures

• Cisatracurium (Nimbex) {atracurium (Tracrium) stereoisomer}

  •   Similar to atracurium (Tracrium), but less laudanosine formed and less histamine released

• Mivacurium (Mivacron): shortest duration of action among nondepolarizing agents

  •   Rapid clearance of isomer mixture by plasma cholinesterase (pseudocholinesterase, i.e. butrylcholinesterase) activity

    • Prolonged duration of mivacurium (Mivacron) action in patients with renal failure {renal failure is associated with reduced plasma cholinesterase activity}

Depolarizing Neuromuscular Blocking Agents

• Overview -- succinylcholine (Anectine)

  • Very brief duration of action (5-10 minutes)

  • Brief duration of action due to: rapid hydrolysis by plasma cholinesterase (butrylcholinesterase/pseudocholinesterase)

    •  Extended duration of action would occur with reduced plasma cholinesterase activity.

  • Initial metabolite of succinylcholine (Anectine): succinylmonocholine (very weak neuromuscular blocking effect)

  • Termination of pharmacological effect--diffusion away from postsynaptic receptors (note the absence of pseudocholinesterase at post-junctional sites

•  Genetic variation: effects on duration of action of succinylcholine (Anectine) blockade

  • Abnormal plasma cholinesterase may prolong succinylcholine (Anectine) effects

  • "Dibucaine (Nupercainal, generic)-number" test identifies patients with abnormal plasma cholinesterase {dibucaine (Nupercainal, generic) inhibits the "normal" enzyme by 80% & the abnormal enzyme by only 20%}

    •  dibucaine (Nupercainal, generic)-variants are the most common plasma cholinesterase genetic variants.



Pharmacodynamics

• Neuromuscular blocking drug pharmacodynamic characteristics determined by measuring:

  •  Speed of onset

  •  Duration of neuromuscular blockade

• Clinical method of determining neuromuscular-blockade properties --

  •  Determine skeletal muscle response evoked by supramaximal electrical stimulation using a peripheral nerve stimulator

  •  Typically: single twitch response to 1Hz {adductor pollicis muscle -- ulnar nerve stimulation}

• Potency determination comparing neuromuscular-blocking drugs:

  •  Dose required to suppress 95% of the single twitch response (ED₉₅}

    •  Potency determined in the presence of nitrous oxide-barbiturate-opioid anesthesia

    •  Volatile anesthetics will significantly decreased ED₉₅.

• Neuromuscular blocking drugs: sequence of muscles affected

  •  Small, rapidly moving muscles (fingers, eyes) before diaphragm

  •  Recovery in reverse order

  •  IV neuromuscular blocker injection (nondepolarizing) to an awake patient:

    1.  Initial difficulty in focusing & weakness in mandibular muscles

    2.  then ptosis, diplopia and dysphagia

  •  Consciousness and sensorium: unaffected, even with complete neuromuscular block

• Blockade onset:

  •  More rapid, less intense effect at laryngeal muscles (vocal cords) then at adductor pollicis (peripheral muscle example)

    •  More rapid laryngeal muscle onset is probably due to a more rapid drug plasma: drug muscle equilibration

    •  Reduced initial intensity of effect at laryngeal muscle (fast fibers) follows from the requirement for more complete receptor blockade for effect then for muscles mainly composed of slow fibers, e.g. adductor pollicis.

  •  Neuromuscular diaphragm blockade:

    • Requires 2 times the dose required for adductor pollicis muscle blockade

    •  Adductor pollicis monitoring: poor indicator of cricothyroid muscle (laryngeal) relaxation

    • Facial nerve stimulation with orbicularis oculi muscle response monitoring is a better reflection of neuromuscular diaphragm blockade onset

    • Orbicularis oculi muscle monitoring is preferable to monitoring adductor pollicis as indicator of laryngeal muscle blockade

"The orbicularis oculi is the thin sphincter muscle of the eyelids. It is
innervated by temporal and zygomatic branches of the facial nerve.", Image courtesy of Vesalius, used with permission (http://www.vesalius.com/graphics/cf_storyboards/orbit/cfsb_orb7.asp)

Adductor Pollicis

Image courtesy of EatonHand (http://www.eatonhand.com/mus/mus005.htm)

Cricothyroid Muscle

Cricothyroid Muscle: Vesalius Site, used with permission (http://www.vesalius.com/graphics/archive/archtn_lar.asp)

Clinical Uses

• Primary uses of neuromuscular-blocking drugs:

  1. Skeletal muscle relaxation facilitating tracheal intubation

  2. Skeletal muscle relaxation to improve intraoperative surgical conditions

• Dose guidelines:

  •  Facilitation of tracheal intubation -- 2 x ED₉₅ dose of nondepolarizing muscle relaxant

    • Laryngospasm: effectively treated with succinylcholine (Anectine)

  •  Optimal intraoperative conditions -- 95% single twitch response suppression

• Neuromuscular-blocking drugs: -- no CNS depression; no analgesia therefore they do not substitute for anesthetic agents

• Other clinical uses:

  • In managing patients requiring mechanical ventilation (intensive care environment)

    •  Adult respiratory distress syndrome

    •  Tetanus

    •  Suppression of spontaneous respiration

Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449. Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219. White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Rationale for Monitoring Neuromuscular Blockade:

  1. NMJ blocking drugs are dangerous in that they interfere with respiration.

  2. Depression of ventilation is a significant cause of anesthesia-related morbidity/mortality--an important factor is the extent of residual neuromuscular blockade.

  3. Narrow drug safety margin (corresponds to a narrow range of receptor occupancy)

  4. Significant patient-to-patient response variabilty to the same dosage

  5. Interactions between NMJ blocking drugs with other agents

Depolarization Neuromuscular Blockade

Succinylcholine (Anectine)

• Time course:
  • rapid onset (30-60 seconds) -- IV
  • short duration of action: 3-5 minutes
• Applications
  • Skeletal muscle relaxation, facilitating intubation
•  Mechanism of Action:
  • Succinylcholine (Anectine) binds to nicotinic cholinergic receptors
    • Promotes post synaptic membrane depolarization causing a relatively long-term depolarization (compared acetylcholine) due to reduced synaptic breakdown.
    •  Blockade occurs because depolarized membrane is unresponsive to subsequent acetylcholine-receptor interaction
•  Phases -- Phase I
  •  Depolarization component is the phase I blockade
  •  Prolonged phase I blockade may be associated with potassium transport (from inside cell out): which may increase serum potassium by 0.5 mEq/L.
  •  Properties of phase I blockade:
    • Reduced amplitude; sustained response to continuous electrical stimulation
    • Reduced contractile-response to single twitch stimulus
    • Enhanced neuromuscular-blockade following anticholinesterase drug administration
    • Train-of-four (TOF) ratio of > 0.7 (the height of the 4th twitch to that of the 1st twitch); a measure of presynaptic membrane effects. When the single twitch height has recovered to about 100%, the train-of-four ratio is about 70%.
    • No post-tetanic facilitation
    • Skeletal muscle fasciculations are associated with initial (onset) succinylcholine (Anectine) action.
• Phases -- Phase II
  • Continued succinylcholine (Anectine) administration results in a transition from endplate depolarization to endplate repolarization.
  • However, this repolarization state is not susceptible to acetylcholine depolarization provided succinylcholine (Anectine) remains present
    • Blockade, even following repolarization, has led to the description of phase II block as "a desensitization blockade".
  • Transition from a phase I to a phase II blockade may be rapid (following a succinylcholine (Anectine) dose of 2-4 mg/kg IV)
    • Phase II onset: initial manifestation -- tachyphylaxis with need to increase succinylcholine (Anectine) infusion rate or to administer larger doses
    • Various degrees of phase I & phase II blockade may coexist
    • Mainly phase I: -- anticholinesterases enhance neuromuscular-blockade
    • Mainly phase II: --anticholinesterases antagonize phase II blockade
      • Small doses of edrophonium (Tensilon) (0.1-0.2 mg/kg, IV) may be useful in discriminating phase I vs. phase II block
• Time course/Duration of Action -- Succinylcholine (Anectine)
  •  Duration of action determined by plasma cholinesterase-mediated succinylcholine (Anectine) hydrolysis
    •  Plasma cholinesterase: hepatic enzyme
    •  Initial succinylcholine (Anectine) metabolite: succinylmonocholine (very weak neuromuscular-blocking)
  • Plasma cholinesterase activity determines the amount of succinylcholine (Anectine) reaching the endplate {most succinylcholine (Anectine) is hydrolyzed by plasma enzyme}
  •  Factors influencing plasma cholinesterase (pseudocholinesterase) activity
    • Reduced hepatic enzyme synthesis
    • The presence of atypical (genetic) plasma cholinesterase which exhibits reduced succinylcholine (Anectine) hydrolytic capacity
    • Liver disease (severe)
    • Drug effects, e.g. neostigmine (Prostigmin) -- a carbamylating cholinesterase inhibitor
• Drugs which may prolong succinylcholine (Anectine) action due to effects on pseudocholinesterase:
  • Insecticides
  • Nitrogen mustard, cyclophosphamide (Cytoxan) -- plasma cholinesterase inhibition
  • Metoclopramide (Reglan) (10 mg IV)
  • High estrogen levels (parturients)
•  Resistance to succinylcholine (Anectine)
  •  Genetic: increased plasma cholinesterase activity
  •  Obesity -- more plasma cholinesterase activity
  •  Pharmacodynamic effects, e.g. myasthenia gravis
    •  In myasthenia gravis: reduced number of nicotinic, neuromuscular junctional receptors -- the target for the drug succinylcholine (Anectine)
•  Atypical Pseudocholinesterase (plasma cholinesterase)
  •  Consequence: prolonged neuromuscular-blockade (1-3 hours) following normal succinylcholine (Anectine) dosage
  •  Dibucaine (Nupercainal, generic)-related cholinesterase variant: most important
    • Dibucaine is an amide local anesthetic that inhibits wild type plasma cholinesterase by 80%; however, it inhibits atypical enzyme by only 20%.
    • If dibucaine (Nupercainal, generic) number equals 80: normal cholinesterase
    • If dibucaine (Nupercainal, generic) number equals 20: homozygous for atypical cholinesterase -- frequency = 1/3200
• Clinical consequences of atypical cholinesterase on neuromuscular-blockade duration
  •  1 mg/kg IV succinylcholine (Anectine): > three hours duration
  • 25% recovery of single twitch response following 0.03 mg/kg IV {small dose} mivacurium (Mivacron): 80minutes
  • For heterozygous atypical plasma cholinesterase patients (frequency: 1/480) -- dibucaine (Nupercainal, generic) number equals 40-60
    • Moderately prolonged duration-- as long as 30 minutes following succinylcholine (Anectine)
  • Dibucaine (Nupercainal, generic) analysis only measures enzyme capability for succinylcholine (Anectine) hydrolysis--
    •  reduced active enzyme {due to affects the liver disease [reduced synthesis] or enzyme inhibition due to anticholinesterases} will affect succinylcholine (Anectine) duration, but not be detected by dibucaine (Nupercainal, generic) analysis

Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449. Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219 White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Succinylcholine (Anectine) side effects

  Succinylcholine (Anectine): major side effect categories

  hyperkalemia	arrhythmias	myalgia	increased intraocular pressure
  increased ICP (intracranial pressure)	skeletal muscle contractions	myoglobinuria	increased intragastric pressure

  • note: Many succinylcholine (Anectine) side effects may be reduced by prior administration of non-paralyzing doses of nondepolarizing neuromuscular-blocking agents

    • This pre-treatment does not reduce the extent of potassium release caused by succinylcholine (Anectine)

    •   Small children are extremely sensitive to succinylcholine given that the parasympathetic system develops in advance of the sympathetic system.  Should intubation not be successful following a single succinylcholine dose, the tendency to give a second dose should be resisted since the second dose may precipitate cardiac arrest.

  • Cardiac arrhythmias:

    • Classification:

      • sinus bradycardia

      • Junctional rhythm

      • Sinus arrest

    • Mechanism:

      •  Direct activation by succinylcholine (Anectine) of muscarinic, cardiac cholinergic receptors

      • Cardiac Effects: most likely following a second succinylcholine (Anectine) dose, administered about five minutes following the initial dosage.

      •   Atropine pre-treatment does not prevent bradycardia following a second succinylcholine (Anectine) dose

      Other autonomic effects:

      •  Succinylcholine (Anectine) activates ganglionic cholinergic receptors producing:

        • Increased heart rate

        • Increased systemic blood-pressure

    • Hyperkalemia -- following succinylcholine (Anectine)

      •   Risk factors:

        •  Muscular dystrophy (clinically unrecognized)

        •  Severe skeletal muscle trauma

        •  Skeletal muscle atrophy following denervation

        •  Unhealed third degree burns

        • Other factors/considerations:

          •  Succinylcholine (Anectine)-mediated potassium release secondary to severe abdominal infection

          • Potassium release following denervation (begins within four days, may last six months or more)

          • Pre-treatment with subparalyzing doses of nondepolarizing blockers is not effective in preventing or affecting the extent of potassium release following succinylcholine (Anectine)

        • Male children with undiagnosed myopathy -- predisposed to succinylcholine (Anectine)-induced:

          •  Hyperkalemia

          •  Rhabdomyolysis

          •  Cardiac arrest

        • Muscular dystrophies:

          •  Most common form of muscular dystrophy (frequency 1/3300 male births): Duchenne's muscular dystrophy

            • Diagnosis not possible until 2-6 years of age

          • Becker muscular dystrophy (X-linked; (frequency: 1/33,000 male births), less common then Duchenne's)

          • Clinical Implications:

            • Probable small percentage of pediatric patients present with undiagnosed myopathy -- alternative to succinylcholine (Anectine) use -- a nondepolarizing neuromuscular-blocking agent

      •  Myalgia-- postoperative succinylcholine (Anectine) skeletal muscle effect

        • Most common localization

          • Neck (pharyngitis)

          • Back

          • Abdominal muscles

      • Possibly due to succinylcholine (Anectine)-induced skeletal muscle fiber contractions {affect reduced by prior treatment with non-paralyzing doses of tubocurarine} -- vecuronium (Norcuron) when used in place of succinylcholine (Anectine) does not prevent myalgia following laproscopy.

    • Increased Intragastric Pressure

      • Succinylcholine (Anectine): frequently increases intragastric pressure

        • Thought to be related to intensity of succinylcholine (Anectine)-induced muscle fasciculation {intragastric pressure increases prevented by previous administration of nondepolarizing agent}

        • Associated risk:

          • Possible gastric fluid passage into esophagus, pharynx, and long

            • gastroesophageal sphincter more likely to open at pressures > 28 cm H₂O

          • Rarely seen in children {probably due to limited muscle fasciculation associated with succinylcholine (Anectine)}

    • Increased Intraocular Pressure

      • Succinylcholine (Anectine): transient increase beginning 2-4 minutes after administration and lasting about 5-10 minutes

      • Possible risk: in open eye injury (unsubstantiated by research}; however, this concern may limit use of succinylcholine (Anectine) in this patient population

Masseter Jaw Anatomy

images obtain from: http://www.teaching-biomed.man.ac.uk/student_projects/1999/surtees/tester/mm.htm; Site concerned with "The Structural and Functional Anatomy of Mastication" by Paul Surtees, B.Sc; The Victoria University of Manchester (1999). permission requested

•   Excessively-long skeletal muscle contraction -- masseter jaw rigidity

  • Halothane (Fluothane)-succinylcholine (Anectine) sequence associated with masseter jaw rigidity/incomplete jaw relaxation in children

    • Considered normal; frequency -- about 4%

    • Clinical Challenge:

      • Normal response vs. masseter jaw rigidity prodromal for malignant hyperthermia

Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449; .Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

Non-depolarizing Blocking Drugs

• Mechanism of Action: Nondepolarizing neuromuscular-blocking drugs

  •  Combination with nicotinic, cholinergic receptors

  •  Greater than 80%-90% receptor blockade required for neuromuscular transmission failure

    •  Reflects wide safety margin as well as basis for neuromuscular blockade clinical monitoring

• Cardiovascular Effects: nondepolarizing neuromuscular blockers

  • Secondary to:

    •  Histamine/other vasoactive substance release

    •  Effects mediated by cardiac muscarinic cholinergic receptors

    •  Effects mediated by autonomic nicotinic cholinergic receptors

  • Factors responsible for cardiovascular effect variation between patients:

    •  Basal autonomic state

    •  Preoperative medications

    •  Choice of agent for anesthesia maintenance

    •  Other drugs' presence

  • Clinical Significance: cardiovascular effects of nondepolarizing agents are usually not significant

  • "Autonomic Margin of Safety": difference between dosage producing neuromuscular-blockade and dosage producing circulatory effects

    •   Relatively low autonomic safety margin --

      •  pancuronium (Pavulon): e.g. ED₉₅ pancuronium (Pavulon) dosage which produces neuromuscular-blockade highly likely to produce cardiovascular effects (particularly chronotropic changes)

    •  Relatively high autonomic safety margin --

      •  vecuronium (Norcuron), rocuronium (Zemuron), cisatracurium (Nimbex): wide safety margins, i.e. neuromuscular-blocking doses are much less than doses required to influence cardiovascular status

  • Myopathy associated with Critical Illness

    •  Definition: patients on nondepolarizing neuromuscular blockers to facilitate mechanical ventilation during prolonged illness may show skeletal muscle weakness following recovery

      •  Critical illness may be associated with acute injury (multi-organ failure), or asthma

      •  Moderate to severe quadriparesis (+/- areflexia) may be exhibited

      •  Weakness time-course: unpredictable

      •  Duration: weeks/months following discontinuation of nondepolarizing agent

      •   Probably more common with aminosteroid agent (e.g. pancuronium (Pavulon) or vecuronium (Norcuron)); has also been observed with atracurium (Tracrium)

        •  Possible increased risk: pre-treatment with glucocorticoids

Factors which alter patient responses to nondepolarizing agents

Gender may also influence duration of action;  combinations of nondepolarizing neuromuscular-blocking agents may result in different effects than agents used separately

• Volatile Anesthetics: interactions with neuromuscular, nondepolarizing agents

  • Dose-dependent increases in magnitude + duration of neuromuscular-blockade {nondepolarizing agents}-- decreasing neuromuscular blocker dose requirement

  •  Most prominent with:

    • Isoflurane (Forane)

    • Desflurane (Suprane)

    • Sevoflurane (Sevorane, Ultane)

  •  Intermediate effects with:

    • halothane (Fluothane)

  •  Least effect with:

    • nitrous oxide-opioid combinations

  • Differential effects based on duration of action of neuromuscular blocking drug:

    • Less reduction in blocker dosage as a result of volatile anesthetic use with intermediate-duration agents:

      • Atracurium (Tracrium)

      • Vecuronium (Norcuron)

      • Rocuronium (Zemuron)

      • Cisatracurium (Nimbex)

    • Greater reduction in blocker dosage as a result of volatile anesthetic use are required with long acting agents:

      • Pancuronium (Pavulon)

      • Doxacurium (Nuromax)

      • Pipecuronium (Arduan)

    •  Advantage of using intermediate-duration neuromuscular-blocking agents:

      • Reduced effects on dosage by volatile anesthetics allows "more predictable degree" of skeletal muscle block {in the Absence of and exact information about brain anesthetic partial pressures}

    •  Mechanism of volatile anesthetic effect on nondepolarizing neuromuscular-blocking drugs:possible causes --

      1.  Anesthetic-induced CNS depression -- with secondary decrease in skeletal muscle tone

      2.  Decreased postjunctional synaptic membrane sensitivity to depolarization

         • Volatile anesthetics decreased twitch response (50% reduction) at higher MAC values, i.e. {1.25-1.75 MAC enflurane (Ethrane); 2.8-3.7 MAC halothane (Fluothane)}

• Antibiotic effects on neuromuscular-blockade {nondepolarizing agents}

  • Some antibiotics increase the effect of nondepolarizing neuromuscular blockers

  • Aminoglycoside antibiotics are most likely to produce this increased blocking effect

• Local Anesthetics (low-dose): enhancement of blockade by nondepolarizing agents

  • Higher local anesthetic doses: complete neuromuscular blockade

  • Local anesthetics may:

    • Inhibit acetylcholine release

    • "Stabilize" postsynaptic membrane {making depolarization more difficult}

    • Direct muscle fiber depression

• Cardiac antiarrhythmic agents/nondepolarizing neuromuscular blocker interactions

  • Lidocaine (Xylocaine) (IV): may increase preexisting blockade

    • Clinical context: lidocaine (Xylocaine) administration during general anesthesia {protocol includes neuromuscular-blockade} recovery.

  • Quinidine gluconate (Quinaglute, Quinalan)

    • Increased blockade {for both nondepolarizing & depolarizing drugs}

      • Probable mechanism: attenuation of acetylcholine release

      • Clinical Context: quinidine gluconate (Quinaglute, Quinalan) administration during recovery from general anesthesia {protocol includes neuromuscular blockers}

• Diuretics -- furosemide (Lasix)

  • Increases neuromuscular-blocking by nondepolarizing agents

  • Probably due to reduced acetylcholine release

  • Related issues:

    • Hypokalemia associated with chronic diuretic use:

      • Decreases pancuronium (Pavulon) dose requirements

      • Increases neostigmine (Prostigmin) dosage required for neuromuscular blockade antagonism

• Magnesium:

  • Accentuates neuromuscular-blockade by nondepolarizing drugs; to a lesser degree also accentuates blockade by succinylcholine (Anectine)

  •  Interaction may be more pronounced with magnesium & vecuronium (Norcuron) than with other agents

  • Clinical Context:

    • Observed as enhancement of neuromuscular blockade {nondepolarizing agent mediated} when magnesium is administered to patients treated with magnesium for pregnancy-caused hypertension (toxemia of pregnancy)

• Phenytoin (Dilantin):

  • Patients chronically treated with phenytoin (Dilantin) are resistant to neuromuscular-blockade produced by nondepolarizing agents

  • Mechanism: pharmacodynamic {higher neuromuscular blocker-plasma concentration are required to produce a given level blockade in patients treated with phenytoin (Dilantin) than to produce same level of blockade in untreated patients}

• Lithium: (used to treat bipolar disorder) -- possible enhanced neuromuscular-blockade by both depolarizing & nondepolarizing drugs

• Cyclosporine (Sandimmune, Neoral) -- possible prolongation of neuromuscular-blockade by nondepolarizing drugs

• Ganglionic blocking drugs (e.g., mecamylamine (Inversine)) may affect duration of neuromuscular-blockade by:

  • Reduced skeletal muscle blood flow

  • Plasma cholinesterase in addition

  • Reduced post-junctional, nicotinic cholinergic receptor sensitivity

• Hypothermia:

  • Increased neuromuscular-blockade duration (pancuronium (Pavulon) & vecuronium (Norcuron))

    • Mechanism: decreased hepatic inactivating enzyme activity (temperature dependency); decreased biliary & renal drug clearance

  •  Increased neuromuscular junctional sensitivity to pancuronium

  •  Increased duration of atracurium (Tracrium) action {also reduces infusion rate necessary to maintain stable neuromuscular-blockade}

    • Atracurium (Tracrium) effect: probably caused by decreased rate of Hoffmann elimination & reduced ester hydrolysis

• Burns:

  •  Prolonged resistance to nondepolarizing neuromuscular blockers

    • Starts about 10 days following injury

    • Peaks about 40 days later

    • Declines after about two months {may last considerably longer > one-year}

  • Mechanism: -- probably pharmacodynamic {higher plasma drug concentration required to cause a given extent of twitch suppression compared to similar extent in non--burn patients}

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996; Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449.

return to Table of Contents

Clinical Pharmacology

• Primary uses of neuromuscular-blocking drugs:

  1. Skeletal muscle relaxation facilitating tracheal intubation

  2. Skeletal muscle relaxation to improve intraoperative surgical conditions

  • Dose guidelines:

    •  Facilitation of tracheal intubation -- 2 x ED₉₅ dose of nondepolarizing muscle relaxant

      • Laryngospasm: effectively treated with succinylcholine (Anectine)

    •  Optimal intraoperative conditions -- 95% single twitch response suppression

  • Neuromuscular-blocking drugs: -- no CNS depression; no analgesia therefore they do not substitute for anesthetic agents

  • Other clinical uses:

    • in managing patients requiring mechanical ventilation (intensive care environment)

      •  Adult respiratory distress syndrome

      •  Tetanus

      •  Suppression of spontaneous respiration

  Miller, R.D., Skeletal Muscle Relaxants, in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp 434-449. Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219. White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

Reversal of non-depolarizing blockers: Antagonist-assisted reversal of neuromuscular blockade produced by nondepolarizing neuromuscular-blocking agents

• Antagonist-assisted neuromuscular-blockade reversal:

  • Edrophonium (Tensilon), neostigmine (Prostigmin), or pyridostigmine (Mestinon)-- effective by increasing acetylcholine availability of neuromuscular junction {secondary to acetylcholinesterase inhibition}

    • Physostigmine (Antilirium): not used because dosage requirement is excessive

  • Anticholinesterase agents are usually administered during spontaneous neuromuscular-blockade recovery

    •  Recovery rate is the sum of (1) spontaneous recovery from the blocking drug and (2) the activity of the pharmacologic antagonist (anticholinesterase drugs)

    •  Therefore: pharmacologic antagonism is more effective for short-or intermediate-acting neuromuscular-blocking drugs (undergoing plasma hydrolysis or Hofmann elimination) compared to long-acting nondepolarizing neuromuscular-blocking agents

  • Special Considerations: use of muscarinic antagonists with anticholinesterases in Reversal of Neuromuscular Blockade

    • Reversal of nondepolarizing neuromuscular-blockade: necessitates only nicotinic cholinergic effects of anticholinesterases agents

      • Minimizing muscarinic receptor-mediated effects of anticholinesterase drugs is beneficial an accomplished by a concurrent administration of atropine or glycopyrrolate (Robinul) (antimuscarinics)

    • The antimuscarinic agent should have a more rapid onset than the anticholinesterase drugs -- reducing drug-induced bradycardia

      •  if edrophonium (Tensilon) (0.5 mg/kg) is used; atropine 7 ug/kg is appropriate

      •  a higher dose atropine (10-15 ug/kg) has been recommended, particularly if opioid-based maintenance anesthetic has been used

      •  if neostigmine is used (slower onset of action compared edrophonium (Tensilon)), then atropine or glycopyrrolate (Robinul) and may be administered as the antimuscarinic agent;

        • Concurrent administration of these drugs results in an initial tachycardia because of atropine's more rapid onset

  • Factors influencing the speed and extent of neuromuscular blockade reversal by anticholinesterase agents

    •  Intensity neuromuscular-blockade when reversal is initiated (train-of-four visible twitches)

    •  Which nondepolarizing neuromuscular-blocking drug is being reversed is a factor

      • Edrophonium (Tensilon): less effective than neostigmine in reversing deep neuromuscular blockade (twitch height < 10% of control) produced by continuous atracurium (Tracrium), vecuronium (Norcuron), or pancuronium (Pavulon) infusions.

      • Edrophonium (Tensilon), probably better than neostigmine (Prostigmine for reversing atracurium (Tracrium) blockade

      • Neostigmine (Prostigmin), probably better than edrophonium (Tensilon) for reversing vecuronium (Norcuron) blockade

    •   Prevention/inhibition of anticholinesterase-mediated antagonism of neuromuscular-blockade -- Possible factors

      • Certain antibiotics

      • Hypothermia

      • Respiratory acidosis (PaCO2 >50 mm Hg

      • Hypokalemia/metabolic acidosis

    • Reversal of phase II block (following prolonged/repeated succinylcholine (Anectine)): may be reversed with edrophonium (Tensilon) or neostigmine (Prostigmin) in patients with normal plasma cholinesterase

      •  In patients with atypical plasma cholinesterase, phase II block reversal may not be reliable, requiring mechanical ventilation until blockade subsides.

Stoelting, R.K., "Anticholinesterase Drugs and Cholinergic Agonists", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, 224-237.

• Neuromuscular blockade: depolarizing agent followed by nondepolarizing agent (Succinylcholine (Anectine), then nondepolarizing agent)

  • Clinical Context

    1. Initial administration of succinylcholine (Anectine){1 mg/kg, IV}-- supporting tracheal intubation

    2. Subsequent administration nondepolarizing agent

    • Greater neuromuscular-blockade in this case (even if evidence of succinylcholine (Anectine) effect has significantly diminished)

      • Counterintuitive effect: since the drug effects should be antagonistic

    • Duration of action of nondepolarizing agents (atracurium (Tracrium) or vecuronium (Norcuron))is not affected -- just the initial increased response

    • At lower succinylcholine (Anectine) doses (0.5 mg/kg)-- no initial enhancement of vecuronium (Norcuron) mediated neuromuscular-blockade.

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219

• Combinations of Neuromuscular-blocking agents

  • Neuromuscular-blockade enhancement due to drug combinations:

    •  Example-- Different major site of action {postsynaptic vs. presynaptic}

      •  Pancuronium (Pavulon) + metocurine (Metubine Iodide) or tubocurarine

        • shorter duration than with pancuronium (Pavulon) alone

      •  Vecuronium (Norcuron) + tubocurarine

    •  Combinations of nondepolarizing agents -- same degree of blockade with smaller dose of each drug

      • Benefit: fewer dose-related side effects

        •  Example: BP/heart rate effects of pancuronium (Pavulon) + metocurine (Metubine Iodide) < with pancuronium (Pavulon) monotherapy

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219

• Gender and neuromuscular-blockade

  • Differential drug sensitivity due to gender:

    •  Pancuronium (Pavulon)

    •  Vecuronium (Norcuron)

    •  Rocuronium (Zemuron)

  • Women:

    •  require 22% less vecuronium (Norcuron) than men to obtain the same degree of neuromuscular junctional blockade

    •  30% more sensitive to rocuronium (Zemuron) than men.

  • Clinical significance:

    • Normal rocuronium (Zemuron) dose should be reduced in women compared to men

  • Possible mechanism: men have a greater skeletal muscle mass percentage-- requiring a higher neuromuscular-blocking dosage

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219

return to Table of Contents

• Doxacurium (Nuromax)

  • Overview: Doxacurium (Nuromax)

    •  Nondepolarizing agents; ED₉₅ -- 30 ug/kg

    •  Time to onset: 4-6 minutes

    •  Duration of action: about 60-90 minutes

    •  Renal clearance (similar to pancuronium (Pavulon))

    •  Extended duration in elderly patients

    •  No histamine release; no cardiovascular effects

  • Drug interactions:

    •  Volatile anesthetics

      • Reduce doxacurium (Nuromax) dose requirements by 20%-40% compared to blocking doses for nitrous oxide-fentanyl (Sublimaze) anesthesia

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219

• Pancuronium (Pavulon)

  • Overview: pancuronium (Pavulon)

    • Commonly used long-acting nondepolarizing agent

    • Low-cost advantage

    • Cardiovascular side effects {doxacurium (Nuromax) & pipecuronium (Arduan) -- similar to pancuronium (Pavulon) but without cardiovascular side effects}

    • Pancuronium (Pavulon) and related agents have replaced older, long-acting nondepolarizing drugs such as:

      • tubocurarine

      • metocurine (Metubine Iodide)

      • gallamine (Flaxedil)

    • No enhancement of histamine release

    • No autonomic ganglia blockade

  • General properties: pancuronium (Pavulon)

    • nondepolarizing agent: ED₉₅ = 70 ug/kg

    • onset: 3-5 minutes

    • duration: 60-90 minutes

    • Pancuronium (Pavulon) block enhanced by respiratory acidosis which opposes neostigmine (Prostigmin) antagonism

  • Pharmacokinetics: pancuronium (Pavulon)

    • Renal excretion: 80% of dose excreted unchanged

    •  Renal dysfunction: pancuronium (Pavulon) clearance may decrease by 33%-50%

    • Hepatic metabolism (10%-40%)-with at least one potent metabolite

    •  Pancuronium (Pavulon) elimination halftime: affected by hepatic cirrhosis/total biliary obstruction

    • Aging: decreased pancuronium (Pavulon) plasma clearance

      • Mechanism: -- probably reduced renal function

  • Cardiovascular Effects: pancuronium (Pavulon)

    • Slight increase (10%-15%):

      • Heart rate

      • Mean arterial pressure

      • Cardiac output

    • Mechanism:

      • Atropine-like effect on cardiac, muscarinic cholinergic receptors

      • Sympathetic, autonomic nervous system activation

    •  Adverse Effects:

      • Increased incidence of cardiac arrhythmias following pancuronium (Pavulon) (but not succinylcholine (Anectine)) in patients treated chronically with digitalis glycosides

      • Increased cardiac arrhythmias may occur due to enhanced sympathetic nervous system activity

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219;  White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Pipecuronium (Arduan)

  • Overview: pipecuronium (Arduan)

    •  nondepolarizing neuromuscular for; ED95 -- 50-60 ug/kg

    •  time to onset: 3-5 minutes

    •  duration of action: 60-90 minutes

    •  Enhanced potency increased/duration of action shortened in infants {relative to adults or children}

    •  No histamine release; no cardiovascular changes associate with pipecuronium (Arduan) administration

  • Pharmacokinetics:

    •  similar to pancuronium (Pavulon) in terms of renal clearance

    •  Hepatic cirrhosis -- no effect on pipecuronium (Arduan) pharmacodynamics/ pharmacokinetics

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

Introduction: Intermediate-acting Nondepolarizing Blockers

• Overview: Intermediate-acting Nondepolarizing Blockers

  • Atracurium (Tracrium), vecuronium (Norcuron), rocuronium (Zemuron), cisatracurium (Nimbex)

  • Efficient clearance mechanisms (reduced likelihood of significant accumulation following repeated administration)

    • Useful; but more expensive alternatives to succinylcholine (Anectine) & pancuronium (Pavulon)

    • Particularly useful for tracheal intubation/skeletal muscle relaxation for short procedures (e.g. outpatient)

• Properties:

  • Intermediate-acting agents (compared to long-acting agents):

    •  Similar time to onset {exception: roncuronium (Zemuron) -- rapid onset, similar to succinylcholine (Anectine)}

    •  Duration of action -- about one-third of long-acting agents

    •  30%-50% more rapid recovery rate

    •  Minimal/absent cardiovascular effects

  • Intermediate duration -- due to rapid/efficient plasma clearance

• Special considerations:

  • Rocuronium (Zemuron)-- rapid onset (similar to succinylcholine (Anectine))

    • Rapid onset -- within one-minute; good choice for tracheal intubation facilitation

  • Method for accelerating onset for other "intermediate acting" agents

    •  Use a small, subparalyzing dose (about 10% of ED95); followed about four minutes by the larger dose (2-3 X ED95)

    •  Divided dose technique = priming principal (neuromuscular-blockade:two-step process)

      1. Initial binding of spare receptors (no clinical effect)-- but reduces safety factor for neuromuscular transmission.

      2. Deeper blockade

  • Priming dose technique may be less valid now with the availability of single, large IV roncuronium (Zemuron) dose -- providing rapid onset -- no risk of drug-induced weakness in awake patients

• Antagonism of blockade cause by intermediate-acting nondepolarizing drugs:

  • anticholinesterase agents -- effective (within 20 minutes of administration of the paralyzing intermediate-acting nondepolarizing drug dose)

    • Pharmacologic antagonism (administration of anticholinesterase drugs) coupled with rapid clearance of the blocker results in enhanced, recovery rates

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Atricurium (Tracrium)

  • Overview:atracurium (Tracrium)

    •  Nondepolarizing, neuromuscular blocker (multiple isomers)

    •  ED₉₅: 0.2 mg/kg

    •  Time to onset: 3-5 minutes

    •  Duration of action: about 20-35 minutes

    •  Site of action:

      • Presynaptic & postsynaptic membrane nicotinic receptors

    •  Degradation: spontaneous, in vivo (Hofmann elimination)

      • More stable in acid pH (storage --pH 3.25-3.65)

        • Should not mix atracurium (Tracrium) with alkaline drugs (e.g. barbiturates) or expose to solutions of more alkaline pH

        • alkaline pH: accelerated breakdown

  • Clearance-- two mechanisms

    • Hofmann elimination -- nonenzymatic; accounts for one-third of the degradation

    • Hydrolysis catalyzed by plasma esterases (nonspecific, i.e. not plasma cholinesterase); accounts for about two-thirds of degraded atracurium (Tracrium)

    • Clearance not dependent on hepatic or renal function

    • Clearance not affected in patients with atypical cholinesterase

  • Laudanosine -- major metabolite of both catabolic atracurium (Tracrium) pathways

    • CNS stimulant --even with long, continues atracurium (Tracrium) infusions in the surgical setting--laudanosine concentrations remain below those apparently required for cardiovascular/CNS action; in the ICU setting with longer durations seizure potential becomes much more likely

  • Cumulative effects

    • No significant cumulative effect due to rapid clearance from plasma (hydrolysis + Hofmann elimination)

  • Cardiovascular Effects:

    • With these background anesthetics: nitrous oxide, fentanyl (Sublimaze), halothane (Fluothane), isoflurane (Forane)

      • no BP/heart rate change associated with rapid IV atracurium (Tracrium) up to (2 X ED95)

    • With nitrous oxide-fentanyl (Sublimaze) anesthesia, IV atracurium (Tracrium) (3 X ED95): slight increase in heart rate (8%); decreased in mean arterial pressure (20%)

      • Cardiovascular effects: transitory (< 5 minutes)

      • Facial/truncal flushing may be due to histamine release (no circulatory effects if patients are pretreated with H₁/H₂ receptor blockers)

      • H₁/H₂ receptors may be activated by prostacyclin (not histamine)

  • Special Patient Populations

    • Pediatric patients

      • Similar atracurium (Tracrium) doses in adults and children (2-16 years old) when doses are calculated using mg/m² rather than on a mg/kg basis.

      • Infants -- 1-6 months: require about 50% of the atracurium (Tracrium) dose given to older children

        • continuous infusion rate (to maintain steady-state blockade): 25% less during the first month of life

    • Elderly patients

      • Increasing age: no effect on atracurium (Tracrium) continuous infusion rate required for constant degree of neuromuscular-blockade

        • Mechanism -- age independence of Hofmann elimination & plasma ester hydrolysis inactivation processes {renal/hepatic state independent}

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Cisatracurium (Nimbex)

  • Overview: cisatracurium (Nimbex)

    •  nondepolarizing neuromuscular blocker

    •  ED₉₅: 50 ug/kg

    • Time to onset: 3-5 minutes

    •  Duration of action: 25-30 minutes

    •  Similar pharmacological profile to atracurium (Tracrium) compared atracurium (Tracrium)

      •  Cisatracurium (Nimbex)(Tracrium) onset slightly slower

      •  Cisatracurium (Nimbex) much less likely to cause histamine release, compared atracurium (Tracrium)

      •  Spontaneous neuromuscular blockade recovery not affected by prolonged infusion (80 hr) to patients requiring ventilation in the intensive care environment-- by contrast to vecuronium (Norcuron)

    • Recovery: accelerated by the use of anticholinesterase agents

  •  Clearance: cisatracurium (Nimbex)

    •  Hofmann elimination (77% cisatracurium (Nimbex) clearance)

      • 16%: renal

    • Neuromuscular-blockade characteristics not affected by hepatic or renal dysfunction

    • Cisatracurium (Nimbex) pharmacokinetics: not appreciably affected by advanced age (slight delay in time to onset)

  • Cardiovascular Effects: cisatracurium (Nimbex)

    • No histamine-releasing effects (by contrast yo atracurium (Tracrium))

    • Large doses (8 X ED₉₅, IV) do not typically induce cardiovascular changes

    • Less change in cerebral hemodynamics compared to equal potent atracurium (Tracrium) dosage

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Vecuronium (Norcuron)

  • Overview: vecuronium (Norcuron)

    •  Nondepolarizing neuromuscular blocker

    •  ED₉₅: 50 ug/kg

    •  Time to onset: 3-5 minutes

    •  Duration of action: 20-35 minutes

    •  Structurally resembles pancuronium (Pavulon) -- vecuronium (Norcuron) reduced anti-vagal properties compared to pancuronium (Pavulon)

    •  Unstable in solution; supplied as lyophilized powder

  •  Clearance

    • Overview

      • hepatic metabolism & renal excretion

        • metabolites generally much less active than vecuronium (Norcuron)

      •  More lipid-soluble compared pancuronium (Pavulon) -- promotes biliary excretion & significant hepatic uptake

      •  Rapid hepatic uptake may be responsible for short duration of action

    •   Reduced renal function

      • Vecuronium (Norcuron) action prolonged in patients with renal failure -- increased concentration of metabolites also contribute to prolonged skeletal muscle paralysis following long-term vecuronium (Norcuron) infusion

    •   Reduced liver function

      • When used in patients with hepatic cirrhosis, vecuronium (Norcuron) at 0.2 mg/kg IV, longer duration of action (longer elimination halftime); not observed that the 0.1 mg/kg IV dose level

      •  In patients with cholestasis, undergoing biliary surgical procedures: vecuronium (Norcuron) duration of action is increased (at the 0.2 mg/kg IV dosage)

  • Cardiovascular Effects

    • Minimal even at 3 X ED₉₅, with rapid IV administration

    • No vagolytic action

    • apparently no/minimal histamine release

    • possible vagotonic vecuronium (Norcuron) effect if administered nearly concurrently with potent opioids (e.g. sufentanil (Sufenta))

      •  vagotonic action may be serious -- promoting sinus nodal exit block & cardiac arrest

  • Use in pediatric patients

    • Vecuronium (Norcuron) potency {during nitrous oxide-halothane (Fluothane) anesthesia}: similar in --

      • infants (7-45 weeks)

      • children (1-8 years)

      • adults (18-38 years)

    • Onset of action: more rapid in infants compared to adults; (infants have high cardiac output -- promoting rapid onset)

    • Duration of action: longest in infants; shortest in children-- (infants have less/immature enzyme systems -- increased volume of distribution)

  • Use in Elderly patients

    • With increased age: decreased continuous infusion rate required to maintain a given level of block

      •  Mechanism:

        •  Age-related hepatic blood flow decrease;

        •  Age-related decreased renal blood flow;

        •  Age-related reduced hepatic microsomal enzyme system activity (possibly)

    • With increased age: prolonged recovery time if vecuronium (Norcuron) was administered by continuous infusion (recovery from individual IV doses of vecuronium (Norcuron): not age sensitive)

  • Use in Obstetric patients

    • Clinically significant fetal effects not observed with nondepolarizing neuromuscular-blocking drugs.

    •  Vecuronium (Norcuron) clearance: increased during late pregnancy; possibly due to enhance microsomal enzyme activity {by progesterone}

    •  Vecuronium (Norcuron)-induced neuromuscular blockade: prolonged immediately postpartum

  • Obesity:

    • Vecuronium (Norcuron) duration of action (but not atracurium (Tracrium)) prolonged in obese (> 130% of ideal body weight) compared with nonobese adults

  • Malignant Hyperthermia

    • Not associated with vecuronium (Norcuron) or atracurium (Tracrium) administration in animal models

    • In a patient susceptible to malignant hyperthermia and therefore pretreated with dantrolene (Dantrium): duration of vecuronium (Norcuron) action prolonged

      •  Mechanism:  Dantrolene (Dantrium) may prolonged action of neuromuscular-blocking agents secondary to dantrolene (Dantrium)-mediated impairment of presynaptic calcium release

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219;  White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Rocuronium (Zemuron)

  • Overview: rocuronium (Zemuron)

    • Nondepolarizing agent; ED₉₅ -- 0.3 mg/kg

    • Time to onset: 1-2 minutes

    • Duration of action: 20-35 minutes

    • reduced potency (relative to vecuronium (Norcuron)) probably responsible for relatively rapid onset [lower potency requires higher dose {more molecules administered} -- more molecules increased the likelihood of initial blockade]

  • Time to onset: Clinical implications --

    •  Time to onset of maximal single twitch depression (following 3-4 X ED₉₅): similar to time to onset for succinylcholine (Anectine) (when mg/kg, IV)

    •  Rocuronium (Zemuron): only nondepolarizing agent which may substitute for succinylcholine (Anectine) when:

      •  Succinylcholine (Anectine) is contradicted

      •  Rapid onset is required to promote tracheal intubation

      •  Differences between rocuronium (Zemuron) & succinylcholine (Anectine)

        •  Laryngeal muscles more resistant to rocuronium (Zemuron) than adductor pollicis: large dose rocuronium (Zemuron) effects resemble succinylcholine (Anectine) at adductor pollicis but will be delayed relative to succinylcholine (Anectine) effects at laryngeal adductors.

  • Duration of action:

    •  Similar to other intermediate-acting agents-- at normal doses

    •  With large dose rocuronium (Zemuron) --3-4 X ED₉₅-- to achieve onset rates similar to succinylcholine (Anectine)-- duration is prolonged (more similar to long-acting nondepolarizing drugs, e.g. pancuronium (Pavulon))

    • Large IM doses (rocuronium (Zemuron)) -- 1-8 mg/kg given to infants/children to support rapid tracheal intubation results in relatively long durations (sixty minutes) -- This long duration may limit clinical utility.

  • Effects on muscle groups

    •  Laryngeal adductor muscles and diaphragm: more resistant to rocuronium (Zemuron) than adductor pollicis muscles

    •  Therefore, complete single twitch response suppression of adductor pollicis is not sufficient to ensure paralysis of laryngeal muscles and diaphragm.

      • Maximal paralysis of laryngeal muscles may not be recognized if suppression of adductor pollicis single twitch response is being monitored as the clinical sign for optimal conditions supporting intubation.

      • Direct laryngoscopy for intubation performed at peak laryngeal muscle paralysis may result in abdominal muscle/diaphragmatic motion when the tracheal tube is positioned -- because the diaphragm and abdominal muscles are not yet fully paralyzed:

        •  This condition is undesirable especially in those cases when pulmonary aspiration gastric contents is considered a risk.

  •  Pharmacokinetics -- Clearance:

    • Rocuronium (Zemuron)

      • -- up to 50% excreted in the bile {animal studies}

      • -- > 30% renal excretion (in 24 hours)

    •  Liver disease: possible increased drug effect duration due to increased volume of distribution

    •  Elderly patients:

      • similar time to onset (compared to young adults)

      • prolonged duration (compared to young adults)

  • Cardiovascular Effects --

    • No histamine released (as with other non-polarizing agents)

    • Small anti-vagal effect -- may be useful in certain surgical procedures which cause vagal stimulation (e.g. opthalmological, laproscopic procedures)

      • Bradycardia (reflex) may occur with atracurium (Tracrium) or vecuronium (Norcuron) in patients undergoing these procedures

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.

• Overview: mivacurium (Mivacron)

  • Only clinically useful nondepolarizing agent classified as short acting

  • ED₉₅: 80 ug/kg

  • Time to onset: 2-3 minutes

  • Duration of action: 12-20 minutes (about 2 X longer than succinylcholine (Anectine); about 30%-40% that of intermediate-acting neuromuscular-blocking agents)

  • mivacurium (Mivacron): no malignant hyperthermia likely (based on swine model)

  • Pancuronium (Pavulon), then mivacurium (Mivacron) leads to prolonged mivacurium (Mivacron) duration of action

• Muscle effects: mivacurium (Mivacron)

  • Mivacurium (Mivacron) (2 X ED₉₅):

    • Maximal depression (single twitch) of orbicularis oculi prior to maximal depression at adductor pollicis {different from succinylcholine (Anectine) which produces maximal depression at the sites concurrently}

    • Loss of orbicularis oculi function (but not adductor pollicis) correlates with maximal laryngeal adductor muscle and diaphragm paralysis

• Clearance: mivacurium (Mivacron)

  • Short duration of action due to: plasma cholinesterase-mediated hydrolysis

    • Hydrolytic rate for mivacurium (Mivacron) about 90% that observed for succinylcholine (Anectine)

  •  Mivacurium (Mivacron) hydrolysis decreased with increased duration of action in the presence of atypical plasma cholinesterase

    • In patients with atypical plasma cholinesterase: mivacurium (Mivacron) blockade is intense in prolonged

      • Effective antidote: administration of human plasma cholinesterase {anticholinesterase agents appear ineffective}

  •  Renal status: renal excretion -- minor pathway for mivacurium (Mivacron) clearance

  •  Hepatic status:

    • Patients with liver cirrhosis may experience prolonged mivacurium (Mivacron) blockade if the liver disease is associated with reduced plasma cholinesterase activity

    • Increase volume of distribution associate with liver disease because reduced neuromuscular-blockade

  •  Pharmacological Antagonism:

    •  May not be needed given rapid spontaneous recovery from mivacurium (Mivacron) blockade

    •  Anticholinesterase agents (e.g. neostigmine (Prostigmin)) because they inhibit plasma cholinesterase may interfere with normal recovery mechanism

      •  Moderate mivacurium (Mivacron)-mediated blockade may respond to neostigmine (Prostigmin)

      •  Deep mivacurium (Mivacron)-mediated blockade maybe antagonized by edrophonium (Tensilon)

•  Cardiovascular Effects: mivacurium (Mivacron)

  • minor at doses up to 2 x ED₉₅

  • rapid IV administration of 3 x ED₉₅ may provoked a decrease in BP (10%-20%), secondary to histamine release

Stoelting, R.K., "Neuromuscular-Blocking Drugs", in Pharmacology and Physiology in Anesthetic Practice, Lippincott-Raven Publishers, 1999, pp 182-219; White, P. F. "Anesthesia Drug Manual", W.B. Saunders Company, 1996.
