Chapter 35  Antibacterial Drugs

Bacterial Cell Wall: Sites of Antibacterial Action

Bacterial cell wall structure Gram-negative Bacterial Membrane Structure Gram-negative Cell Membrane Model Gram-negative bacteria are surrounded by two membranes. The outer membrane functions as an efficient permeability barrier containing lipopolysaccharides (LPS) and porins. [graphic: © Linda M. Stannard used with permission] Cell Membrane   Peptidoglycan Cytoplasmic Membrane   Gram-positive Bacterial Membrane Structure Gram-positive Membrane The lipid bilayer cell membrane of most of the Gram-positive bacteria is covered by a porous peptidoglycan layer [graphic: © Linda M. Stannard used with permission] Peptidoglycan Layers     Cytoplasmic Membrane   Return to top Menu Multiple sites of inhibition by antibacterial agents   Gram-negative Cell Membrane Model Gram-negative bacteria are surrounded by two membranes. The outer membrane functions as an efficient permeability barrier containing lipopolysaccharides (LPS) and porins. [ graphic: ©Linda M. Stannard used with permission] Cell Membrane PBP: Penicillin Binding Protein: Site of Penicillin Action Peptidoglycan Cytoplasmic Membrane   Gram-positive Membrane The lipid bilayer cell membrane of most of the Gram-positive bacteria is covered by a porous peptidoglycan layer [graphic: ©Linda M. Stannard used with permission] Peptidoglycan Layers   Penicillin-binding Protein (PBP): Site of Penicillin action Cytoplasmic Membrane   Return to top Menu

Inhibitors of Cell-Wall Synthesis

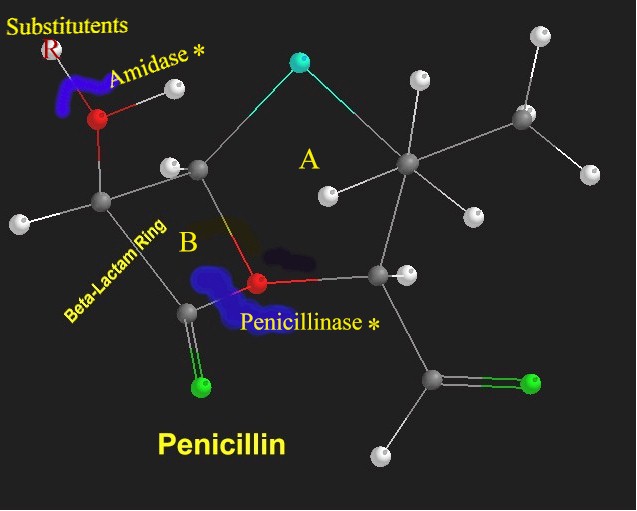

Penicillin Structural Features and Requirements for Antibacterial Activity

Penicillins have similar structures: a thiazolidine ring (A) atached to a ß-lactam ring (B). Substituents are attached to the amino group (R). Moieties A and B together constitute the 6-aminopennicillanic acid nucleus required for antibacterial activity. Cleaving the ß-lactam ring by penicillinases (ß-lactamases) results in loss of antibacterial properties. Penicillins may also be inactivated by amidases. Static figure (left top): Nitrogen atoms are red, sulfur light blue-green and oxygen atoms are green. 3D interactive figure (left, bottom) atoms are identified.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Beta-Lactam & Other Inhibitors of Cell Wall Synthesis,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 724.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Beta-Lactam & Other Inhibitors of Cell Wall Synthesis,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 725.; Archer,G.L. and Polk, R.E. Treatment and Prophylaxis of Bacterial Infections, In Harrison's Principles of Internal Medicine 14th edition, (Isselbacher, K.J., Braunwald, E., Wilson, J.D., Martin, J.B., Fauci, A.S. and Kasper, D.L., eds) McGraw-Hill, Inc (Health Professions Division), 1998, p. 859.

Return to top Menu

Spectrum: Penicillins

Penicillins (Penicillin G): Activity Profile: Effective Against:

Gram Positive Organisms Gram-negative cocci Non-ß-lactamase producing anaerobes

Antistaphylococcal penicillins (nafcillin (Nafcil, Unipen)) are ß-lactamase resistant: Effective Against:

Staphylococci Streptococci

Extended Spectrum Agents (nafcillin (Nafcil, Unipen)); penicillinase sensitive: Effective Against:

Antibacterial Spectrum of Penicillins Better activity against gram-negative organisms

Archer,G.L. and Polk, R.E. Treatment and Prophylaxis of Bacterial Infections, In Harrison's Principles of Internal Medicine 14th edition, (Isselbacher, K.J., Braunwald, E., Wilson, J.D., Martin, J.B., Fauci, A.S. and Kasper, D.L., eds) McGraw-Hill, Inc (Health Professions Division), 1998, p. 862-863; Chambers, H.F., Hadley, W. K. and Jawetz, E. Beta-Lactam & Other Inhibitors of Cell Wall Synthesis,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 724.

Return to top Menu

Acid and ß-Lactamase Resistant Penicillins

• Acid Stable Penicillins include Carbenicillin, Indanyl, ampicillin (Principen, Omnipen), *nafcillin (Nafcil, Unipen), * dicloxacillin (Dynapen),*Cloxacillin (Cloxapen), oxacillin (generic), Penicillin V (Pen-Vee K, Veetids).  [*: ß-lactamase (Penicillinase resistant)]

 Adverse Reactions to Penicillins

The most common adverse reaction to penicillins are classified as hypersensitivity reactions.  Furthermore, penicillins are the most common cause of drug allergy.  Hypersensitivity reactions from most common to least* are as follows: macropapular rash urticarial rash fever bronchospasm vasculitis serum sickness exfoliative dermatitis Stevens-Johnson syndrome anaphylaxis *Overall incidences is estimated to be between 0.7% to 10%. The most serious hypersensitivity reactions caused by penicillin are angioedema and anaphylaxis.  Angioedema is characterized by significant swelling of lips, tongue, face and periorbital tissues.   Anaphylaxis places the patient in the most immediate danger and may manifest as sudden, severe hypotension and death. Mandell, G.L. and Petri, W. A. Antimicrobial Agents: Penicillins, Cephalosporins, and other ß-Lactam Antibiotics.,In, Goodman and Gillman's The Pharmacologial Basis of Therapeutics, (Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp.1086-1088)

Return to top Menu

Clinical Use: ß-Lactams

Clinical Uses-Penicillins:

• Penicillin (Penicillin G) Effective Against: Staphylococci-non beta-lactamase producing, streptococci non-beta-lactamase producing, Bacillus anthracis, enterococci,  Meningococci, Actinomyces, Spirochetes, Clostridium, Gram-positive rods.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Beta-Lactam & Other Inhibitors of Cell Wall Synthesis,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 728.

• As noted earlier penicillins may be sensitive to beta-lactamase producing bacteria.  Those penicillins resistant to beta-lactamase producing staphylococcal strains include: methicillin (Staphcillin), nafcillin (Nafcil, Unipen) and certain isoxazolyl penicillins such as oxacillin (generic), cloxacillin (Cloxapen), and dicloxacillin (Dynapen)

  • Clinical Indications for penicillins resistant to beta-lactamase producing staphylococcal strains.

    • The primary indication would of course the infection by beta-lactamase producing staphylococcal organisms.  However, other susceptible bacteria include penicillins susceptible strains of streptococci and pneumococci.  These drugs however all are enacted against enterococci, anaerobic bacteria, gram-negative cocci and rods.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Beta-Lactam & Other Inhibitors of Cell Wall Synthesis,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 729.

Clinical Use: Cephalosporins

Interlude:  Microorganisms

1Bacteriodes fragilis  B. fragilis  is probably the most important of all anaerobes based on the likelihood of occurrence in clinical settings as well as because of its resistance to many antibiotics. Bacteriodes fragilis is classified as a gram-negative Bacillus exhibiting rounded ends and are usually encapsulated. Review: gram-negative aerobic bacilli are responsible for numerous infection types ranging from oral to bone infections.  Pathological manifestations include participation in pathologic processes such as periodontal disease and colon cancer.  Gram-negative bacteria release enzymes such as neuraminidase and collagenase which facilitate organism tissue penetration. Anaerobic infections include: bite infections, oral or dental infections, empyema, lung abscess, aspiration pneumonia, post-abortion infections, appendicitis, diverticulitis, septic thrombophlebitis, and septicemia which may be associated with diabetes, cancer, "negative" blood cultures and corticosteroids. 1 Sydney M. Finegold "Anaerobic Gram-Negative Bacilli" in Medical Microbiology (4th edition) edited by Samuel Baron, M.D., The University of Texas Medical Branch, http://gsbs.utmb.edu/microbook/ch020.htm E . coli Klebsiella pneumoniae Serratia (a, left)  Image credit: Shirley Owens and Catherine McGowan, Microbe Zoo Project, Comm Tech Lab, Michigan State University. Serratia (b, right) EuroMech 422 Pattern Formation by Swimming Micro-Organisms http://www.amsta.leeds.ac.uk/Euromech422/   Proteus http://www.laboratoria.khv.ru/std/gallery_std2/proteus.htm 2In the clinical laboratory setting, E . coli (Escherichia coli) is probably the most commonly isolated organism.  E . coli is a member of the group of pathogens called coliform bacilli which include these genera  Escherichia, Enterobacter, Citrobacter, Klebsiella, and Serratia.  Additionally, Proteus is a member of this group.  Many of these organisms are normally found in the gastrointestinal tract, thereby being considered normal flora. Infections: Enteric infections -- E . coli is a major contributor to infections, especially in the developing countries, as a major enteric (intestinal) pathogen. Nosocomial infections (hospital acquired infections) are frequently (frequency = 29%  in United States) due to Coliform and Proteus bacilli. These organisms are frequently responsible for urinary tract infections (46%) and infections associated with surgical sites (24%).  E . coli is the most prominent nosocomial pathogen. Community-acquired infections: As noted above for nosocomial infections come E . coli is prominent as a cause of urinary tract infection's in the community acquired environment.  Urinary tract infections include prostatitis and pyelonephritis.  Other common pathogens responsible for urinary tract infection's include Proteus, Klebsiella, and Enterobacter.  Proteus mirabilis is the most likely cause of infection-related kidney stones.  Klebsiella pneumoniae  causes severe pneumonia. 2 M. Neal Buentzel "Escherichia, Klebsiella, Enterobacter, Serratia, Citrobacter, and Proteus" in Medical Microbiology (4th edition) edited by Samuel Baron, M.D., The University of Texas Medical Branch, http://gsbs.utmb.edu/microbook/ch026.htm 3Moraxella catarrhalis 3Moraxella cattarrhalis, a gram-negative bacteria often found in normal human upper respiratory tract flora, are similar in appearance to Neisseria cells .  Occasionally, Moraxella cattarrhalis may cause significant lung disease such as pneumonia and acute bronchitis as well as important systemic infections including meningitis and endocarditis.  In both children and adults, this organism may be commonly responsible for otitis media, sinusitis, and conjunctivitis. (Moraxella cattarrhalis may cause as many as 20% of otitis media presentations) Moraxella cattarrhalis may be responsible for lower respiratory tract infection in those adults who have chronic lung disease. This organism is often found in the normal flora and children (frequency = 40%-50%). Moraxella cattarrhalis can cause symptoms that are very similar, nearly indistinguishable from those caused by gonococci, so the differential assessment is quite important.  Also, many Moraxella cattarrhalis strains elaborate beta-lactamase making them resistance too many beta-lactam antibiotics. 3 Stephen A. Morse "Neisseria, Moraxella, Kingella, and Eikenella" in Medical Microbiology (4th edition) edited by Samuel Baron, M.D., The University of Texas Medical Branch, http://gsbs.utmb.edu/microbook/ch014.htm &Volk WA, Gebhardt BM, Hammarskjold M-L, et al, eds. Essentials of Medical Microbiology, 5th ed. Philadelphia, PA: Lippincott-Raven; 1996. & GlaxoSmithKline, 2001 (Augmentin use), http://www.augmentin.com/1_1_3.asp

Return to top Menu

Mandell, G.L. and Petri, W. A. Antimicrobial Agents: Penicillins, Cephalosporins, and other ß-Lactam Antibiotics.,In, Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp.1089-1092

Return to top Menu

More about Cephalosporins

• First Generation Cephalosporins are rarely a drug of choice.  However, these agents are very active against gram-positive cocci, but are not active against methicillin (Staphcillin)-resistant isolates of staphylococci. First-generation agents are excreted by glomerular filtration and tubular secretion which may be blocked by probenecid (Benemid).

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 732-733.

• Second Generation Cephalosporins exhibit activity against gram-positive cocci with an extended gram-negative spectrum compared to first-generation agents.  Second generation drugs are active against beta-lactamase producing H.influenzae.  Furthermore, good activity is exhibited against anaerobes which is a particularly useful characteristic in mixed infections such as peritonitis.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p. 734.

• Third Generation Cephalosporins are generally more active against gram-negative organisms (except for the drug cefoperazone (Cefobid)). Some members of this group have enhanced ability to cross the blood-brain barrier.

  • Third-generation drugs tend to exhibit activity against  Citrobacter, Serratia marcescens and Providencia and ß-lactamase producing Haemophilus and Neisseria.

  • Third generation cephalosporins are effective in treating a large variety of infections resistant to many other drugs

  • Ceftriaxone (Rocephin) and and cefixime (Suprax)   are first-line antibiotics for treating gonorrhea.

  • Third generation agents cross the blood brain barrier and are effective in treating menningitis caused by pneumococci, meningococci, H. influenzae and susceptible gram negative rods (not by Listeria monocytogenes)

  • Ceftriaxone (Rocephin) and cefotaxime (Claforan) are the most active cephalosporins against penicillin-resistant pneumococci.

  • Third generation agents may not be effective in treating menningitis caused by highly penicillin-resistant strains and treatment may require addition of vancomycin (Vancocin) or rifampin (Rimactane)

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 734-735.

Return to top Menu

Specific First Generation Cephalosporin Drugs

• First generation cephalosporins include:  cephalexin (Keflex), cephradine (Velosef), cephalothin (Keflin), cefadroxil (Duricef, Ultracef),and cephapirin (Cefadyl)

  • First generation cephalosporins are administered orally an exhibit a fairly broad spectrum of action while being relatively nontoxic.

  • These agents appear suitable for treatment of urinary tract infections (UTI), cellulitis or soft tissue abscess.

  • Oral cephalosporins not indicated for serious systemic infections.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p 734.

Specific Second Generation Cephalosporin Drugs

• Review & Overview:  Second Generation Cephalosporins

  • Second generation agents are active against gram-positive cocci an exhibit an extended gram-negative spectrum compared to first generation drugs.

  • Second generation drugs are generally effective against beta-lactamase reducing H.influenzae.

  • They exhibit good activity against anaerobes and are effective in mixed-infections, as an example, peritonitis.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p. 734

Examples of second generation cephalosporins:

• Cefaclor (Ceclor), cefamandole (Mandol), cefaclor (Ceclor),  and cefonicid (Monocid).

• Cefuroxime (Zinacef, Ceftin)  is effective in community-acquired pneumonia or take your leave the causative organism may be beta-lactamase producing H.influenzae or Klebsiella pneumoniae.  Cefuroxime (Zinacef, Ceftin) is the only second-generation drug across the blood-brain barrier, although third-generation agents such as ceftriaxone (Rocephin) or cefotaxime (Claforan) or more effective in managing meningitis.

• Cefprozil (Cefzil) ceforanide (Precef).

• Cefmetazole (Zefazone) cefotetan (Cefotan) and Cefoxitin (Mefoxin) are effective in mixed anaerobic infections due to activity against anaerobes (e.g. B. fragilis)

 Specific Third Generation Cephalosporin Drugs

• Review & Overview: Third Generation Cephalosporins

  • Generally, third-generation drugs are more active against gram-negative microbes (except cefoperazone) and exhibit enhanced ability (in some cases) to traverse the blood brain barrier.

  • These agents areActive against Citrobacter, Serratia marcescens and Providencia and ß-lactamase producing Haemophilus and Neisseria.

  • Third generation cephalosporins are effective in treating a large variety of infections resistant to many other drugs.

  • Ceftriaxone (Rocephin) and and cefixime (Suprax)   are first-line antibiotics for treating gonorrhea.

  • Third generation agents cross the blood brain barrier and are effective in treating menningitis--caused by pneumococci, meningococci, H. influenzae and susceptible gram negative rods (not by Listeria monocytogenes)

  • Ceftriaxone (Rocephin) and cefotaxime (Claforan) most active cephalosporins against penicillin-resistant pneumococci.

  • Third generation agents may not be effective in treating menningitis caused by highly penicillin-resistant strains and treatment may require addition of vancomycin (Vancocin) or rifampin (Rimactane)

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 734-735.

Examples of third generation cephalosporins:

• Ceftazidime, Cefoperazone are effective against P. aeruginosa.   (Third-generation cephalosporins are hydrolyzed by enterobacter chromosomal ß-lactamase)

•  Cefotaxime (Claforan)

• Ceftizoxime (Cefizox)

• Ceftriaxone, Cefixime

  • Drugs of choice in treatment of gonorrhea since many isolates of N gonorrhoeae are penicillin resistant

  • Ceftriaxone (Rocephin)/cefixime should not be used to treat Enterobacter infections due to the likelihood of resistance emergence.

• Proxetil

• Cefibute

• Moxalactam

Fourth Generation

• Cefepime, although classified as a fourth-generation agent, exhibits many properties of third-generation cephalosporins.  Cefepime (Maxipime) is somewhat more resistant to hydrolysis by beta-lactamases and exhibits activity against certain beta-lactamases which inactivate many third-generation drugs.

• Cefepime (Maxipime) exhibits activity against most penicillin-resistant strains of streptococci and has been considered effective in management of Enterobacter infections.  At this agent also exhibits effectiveness against Staphylococcus aureus, Staphylococcus pneumoniae, Enterobacteriaceae and  P. aeruginosa.

• Generally, cefepime (Maxipime) may be considered clinically comparable to most third-generation cephalosporins.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 732-736;Chambers, H.F., Beta-Lactam Antibiotics & Other Inhibitors of Cell Wall  Synthesis in Basic and Clinical Pharmacology, (Katzung, B. G., ed), Appleton-Lange, 2001, p. 766.

Other ß-lactam containing antibacterials

Aztreonam (Azactan)

• Aztreonam (Azactan) is a synthetic monobactam antibiotic, having a moncyclic, rather than a bicyclic nucleus.

• This agent inhibits synthesis of bacterial cell wall by high-affinity binding to penicillin-binding protein (PBP₃ ) which is found primarily in aerobic, Gram-negative microbes.

• Aztreonam (Azactan) is highly resistant to ß-lactamases.

• Spectrum of activity includes aerobic, Gram-negative bacterial and is similar in activity to aminoglycosides without causing ototoxicity or nephrotoxicity.

• Aztreonam (Azactan) is effective in treating Gram-negative urinary tract infections, lower respiratory tract, skin, intraabdominal, gynecologic infections and septicemia.

• This drug may be used in combination with other antibiotics which are active against Gram-positive microbes and anaerobes in mixed infections.

• Contraindications for Aztreonam (Azactan): safe use during pregnancy (category B), in nursing women, infants and children has not established.

• Cautious use: hypersensitivity history to penicillin, cephalosporins; impaired renal or liver function.

• Aztreonam (Azactan) exhibits activity against Hemophilus influenzae, Pseudomonas aeruginosa, Neisseria gonorrhoeae and Enterobacteriacea including most isolates of E . coli, Enterobacter, Klebsiella, Proteus, Providencia, Shigella, Salmonella,  and Serratia.

Shannon, M.T., Wilson, B.A., Stang, C. L. In, Govoni and Hayes 8th Edition: Drugs and Nursing Implications Appleton & Lange, 1995, pp. 166-167.

Imipenem Premaxin, Meropenem

• Combination of imipenem, a ß-lactam antibiotic, and cilastin which inhibits dipeptidase enzyme degradation of imipenem. Without cilastin renal dehydropeptidases inactivate the drug which results in low urinary tract concentrations.

• Imipenem inhibits bacterial cell wall mucopeptide synthesis and is bacteriocidal.

  • very wide spectrum among the ß-lactams, providing good coverage of gram-negative rods, gram-positive bacteria, and anaerobes.

• ß-lactamase resistant.

• Not Effective in treating: Enterococcus faecium, methicillin-resistant strains of staphylococci, Claostridium difficile, Burkholderia cepacia and Stenotrophomonas maltophilia.

• Synergistic actions with aminoglycoside antibiotics against some strains of Pseudomonas aeruginosa. Combination with an aminoglycoside is recommended because of Pseudomonas rapidly develops resistance to imipenem.

• Agent of choice for treating Enterobacter infections.

• Meropenem has somewhat great antibacterial effects against gram-negative aerobes and slightly less activity against gram-positive organisms.

• Meropenem is less seizure producing compared to imipenem.

Effective in treating these infections:

urinary tract	lower respiratory tract	bones	joints	skin
intra-abdominal	gynecological	mixed infections	endocarditis	bacterial septicemia

• Contraindications:

  • Contraindicated: hypersensitive patients

  • safe use in pregnancy (category C) or in children <12 not established.

  • Caution use: nursing mothers

  • Cautious use: patient with CNS disorders including seizures, brain lesions; renal impairment

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p. 737..;Shannon, M.T., Wilson, B.A., Stang, C. L. In, Govoni and Hayes 8th Edition: Drugs and Nursing Implications Appleton & Lange, 1995, pp. 614-615.

Clavulanic acid, Sulbactam, Tazobactam

• Clavulanic acid, sulbactam and tazobactam are potent inhibitors of many bacterial ß-lactamases.

• These agents are given together with hydrolyzable penicillins to protect them from inactivation.

Most effective against plasmid-encoded beta-lactamases including those produced by:

staphylococci H. influenzae N. gonorrhoeae

Salmonella Shigella E. coli K. pneumoniae

• Not effective inhibitors of inducible chromosomal ß-lactamases which are produced by Enterobacter, Citrobacter, Serratia, Pseudomonas.

• These similar drugs are given in fixed combination with specific penicillins which determines the antibacterial spectrum.

• The ß-lactamase inhibitors can extend the spectrum of an antibiotic, e.g. ampicillin in combination with sulbactam is effective against ß-lactamase producing S. aureus and H. influenzae.

• Effectiveness is dependent upon the variant of ß-lactamase enzyme produced.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 736-737.



Other Inhibitors of Cell-Wall Synthesis

Vancomycin

• Vancomycin, a glycopeptide, is active only against gram-positive bacteria, especially staphylococci {one exception is that it is active against Flavobacterium}

• Vacomycin is an inhibitor of bacterial cell wall synthesis by preventing peptidoglycan elongation and cross-linking.

• Critical resistance to the antibacterial action of vancomycin is due to a modification of its peptidoglycan binding site, a modification that reduces binding affinity.

• Vancomycin is bacteriocidal for gram-positive bacteria including ß-lactamase producing staphylococci and those resistant to nafcillin and methicillin.

• Vancomycin kills only dividing cells and relatively slowly.

• Vancomycin acts synergistically with gentamicin and streptomycin (aminoglycosides) against E. faecium and E. faecalis isolates not resistant to aminoglycosides.

• Major Clinical Use

  • Sepsis

  • Endocarditis due to methicillin resistant staphylococci

  • note:Methicillin-susceptible Staph isolates would be more effectively treated with methicillin than vancomycin.

  • Treatment alternative enterococcal endocarditis.: Vancomycin with gentamycin: for patient allergic to penicillin.

  • Vancomycin incombination with cefotaxime, ceftriaxone or rifampim: appropriate for treatment of mennigitis when the suspected infecting agent is thought/known to be highly penicillin resistant.

  Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 737-739.



Bacitracin

• Bacitracin is a cyclic peptide mixture that is active against gram-positive microbes.

• Bacitracin inhibits cell wall formation by interfering with peptidoglycan transfer to the developing cell wall and exhibits no cross-resistance between bacitracin and other antimicrobials.

• Due to systemic toxicity, bacitracin is limited to topical use.

• Major Clinical Use

  • Alone or in combination with polymyxin or neomycin: treatment of mixed skin, wound or mucous membrane infections.

• Adverse Effects

  • Significant nephrotoxicity with systemic administration

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, p. 739.

Cycloserine

• Cycloserine, a structural analog of D-alanine, inhibits both Gram-positive and Gram-negative bacteria.

• Mechanism of action  is inhibition of D-alanine incorporation into peptidoglycan by inhibiting alanine racemase (which converts L-alanine to D-alanine) and D-alanyl-D-analanine ligase

• Major Clinical Use

  • Used almost exclusively for treating tuberculosis caused by M. tuberculosis isolates resistant to primary drugs.

•  Adverse Effects

  • CNS toxicity at higher than clinical doses

Chambers, H.F., Hadley, W. K. and Jawetz, E. Introduction to Antimicrobial Agents in Basic and Clinical Pharmacology, (Katzung, B. G., ed) Appleton-Lange, 1998, pp. 739-740

Return to top Menu

Membrane-Active Agents

Mechanisms of action of polymixin and gramicidin antibacterial action  & Clinical uses of these agents

Polymixins

• Polymixins (polymixin E) are amphipathic (containing lipophilic and lipophobic groups) basic peptides which exhibit activity against gram-negative bacteria.

• They are bacteriocidal for many gram-negative rods including Pseudomonas.

• Polymixins disrupt bacterial cell membranes through strong interactions with phospholipid components.

• Gram-positive bacteria, Proteus, Neisseria are resistant to polymixins.

• Polymixin B sulfate used topically for treatment of external otitis and corneal ulcers due to Pseudomonas aeruginosa.

• Systemic use of polymixins not recommended becasue of poor tissue distribution, significant nephrotoxicity and neurotoxicity and the availability of more effective other antibacterial drugs.

• Polymixin E is active against:

  • Pseudomonas aeruginosa

  • Escherichia coli

  • Enterobacter

  • Klebsiella

• Clinical Applications of Polymixin B

  • Skin, mucous membrane, eye and ear infections (for sensitive organism).

  • For example, external otitis (Pseudomonas) or corneal ulcers (Pseudomonas aeruginosa

  • Sometimes used by aerosol as an adjunct to other antibiotics in difficult cases of Pseudomonas pneumonia.

Chambers, H.F.and Hadley, W. K. Micellaneous Antimicrobial Agents: Disinfectants, Antiseptics adn Sterilants, in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, pp 803-804

 Robertson, D.B, and Maibach, H.I. Dermatologic Pharmacology , in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p 1000

Kapusnik-Uner, J.E., Sande, M.A. and Chambers,J.F. Antimicrobial agents: Tetracyclines, Chloramphenicol, Erythromycine, and Miscellaneous Antibacterial Agents, In, Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) The McGraw-Hill Companies, Inc.,1996, pp.1143-1144.

• Gramicidin: peptide antibiotic which alters membrane permeability-effective against gram-positive organisms

• Gramicidin may be used in combination with neomycin, polymyxin B or both.

• Available only for topical usage

•  Systemic toxicity

• Gramicidin Active Against:

  • Streptococci

  • Pneumococci

  • Staphylococci

  • Most anaerobic cocci

  • Neisseriae

  • tetanus bacilli

  • diphtheria bacilli

Robertson, D.B, and Maibach, H.I. Dermatologic Pharmacology , in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p 1000.

Mechanistic Comparisons: Membrane Active Agents vs. Inhibitors of Cell-Wall Synthesis

Polymixin B  Polymixins (polymixin E): basic peptides which are amphipathic (containing lipophilic and lipophobic groups)  Disrupt bacterial cell membranes through strong interactions with phospholipid components.

Inhibitors of Cell Wall Synthesis Penicillin-binding Proteins (PBPs) catalyze an important step in bacterial cell wall synthesis [a transpeptidase reaction which removes a terminal alanine in a crosslinking reaction with a nearby peptide]. One mechanism of penicillin antibacterial action is through binding to these proteins, thereby inhibiting their activity.

Return to top Menu



Inhibitors of protein synthesis (IPS)

• Rationale for targeting of bacterial protein synthesis

• Relationships between mechanism and therapeutic/adverse effects

Aminoglycosides

Mechanisms of action for aminoglycosides

Chloramphenicol: (Chloromycetin)

• Chloramphenicol, macrolides, and clindamycin (Cleocin) bind to bacterial ribosomal RNA (50S subunit of 70S ribosomal RNA)

• Chloramphenicol blocks binding of charged tRNA to its binding site on the ribosomal RNA-mRNA complex.

• As a result, transpeptidation cannot occur and the peptide is not transfered to the amino acid acceptor.

• Protein synthesis stops.!

Macroclides/Clindamycin:

• Macrolides and clindamycin (Cleocin) block movement of peptidyl tRNA from acceptor to donor site.

• As a result, the next, incoming tRNA cannot bind to the still occupied acceptor site.

• Protein synthesis stops.!

Tetracycline:

• Tetracycline binds to 40S ribosomal RNA, blocking association of amino acid-charged tRNA with its acceptor site on the ribosomal mRNA complex.

• Protein synthesis stops.!

Susceptibility Differences between bacterial and mammalian cells

• Mammalian 80S ribosomal RNA does not bind chloramphenicol.

• However, mammalian mitochondrial ribosomal RNA (70S) does bind chloramphenicol.

• Chloramphenicol (Chloromycetin) dose-related bone marrow suppression may be due to drug's effect on mitochondrial ribosomes

• Tetracycline inhibits mammalian cell protein synthesis, but an active efflux system may prevent intracellular drug concentrations from reaching toxic levels.

Aminoglycosides:

• Protein synthesis inhibition is probably due to binding to 30S ribosomal proteins.

• Detailed analysis of streptomycin suggest three specific protein synthesis inhibition mechanisms:

  1. interference with "initiation complex" of peptide formation

  2. causing misreading of mRNA which results in incorrect amino acid incorporation

  3. promotion of polysomal dissociation into nonfunctional monosome. These combined effects, occurring at the same time, are probably responsibile for aminoglycoside bacteriocidal properties.

• Spectrum of activity and clinical uses

  • Aminoglycosides: gram-negative enteric bacteria especially if the microbe is suspected to be a drug-resistant isolate or sepsis may be present.

  • Nearly always used in combination with a ß-lactam to extend coverage to possibly gram-positive microbes.

  • Aminoglycosides and ß-lactams are synergistic.

  • Penicillin-aminoglycoside combinations:

    • bacteriocidal in enterococcal endocarditis reduces therapy duration for viridans streptococcal and staphylococcal endocarditis

• Classic adverse effects of aminoglycosides

  • Aminoglycosides are ototoxic and nephrotoxic.

  • Aminoglycoside in patients receiving a loop diuretic (furosemide) or  other nephrotoxic antibiotics (vancomycin (Vancocin) or amphotericin B (Fungizone)) worsens renal toxicity.

  • Ototoxicity manifests as: tinnitus, high-frequency hearing loss or as vestibular damage: vertigo ataxia.

  • Reduced creating clearance and increasing serum creatinine are associated with aminoglycoside-induced renal toxicity. First indications of aminoglycoside renal toxicity may be increased "trough" drug concentrations, reflecting decreasing renal drug clearance.

  • Very high aminoglycoside doses produce neuromuscular blockade (paralysis) which is reversible in early stages by calcium infusion or by neostigmine.

Most ototoxic-----------------------------Most toxic to the vestibular system

neomycin kanamycin amikacin

neomycin tobramycin gentamicin

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, pp. 753-754

Specific drugs

• Streptomycin

  • Streptomycin: main use: second-line treatment for tuberculosis

  • Used only in combination with other antimicrobials (otherwise rapid emergence of resistance)

  • In combination with oral tetracycline, i.m. streptomycin may be used in treating:

    • plague

    • tularemia,

    • bucellosis.

  • In combination with penicillin:

    • treatment for enterococcal endocarditis

    • viridans streptococcal endocarditis (two-week regimen)

  •  Adverse Reactions

    • fever

    • rash (hypersensitivity)

    • Most serious toxic effect: vestibular toxicity which tends to be irreversible.

    • treptomycin administration during pregnancy may result in deafness in the newborn.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 754.

• Gentamicin (Garamycin):

  • Gentamicin (Garamycin): effective against gram-positive and gram-negative microbes

  • Active alone but shows synergism with ß-lactam antimicrobials in managing

  Pseudomonas Proteus Enterobacter

  Klebsiella Serratia Stenotrophomonas Other gram-negative rods

  • No activity against anaerobes.

  • Primary clinical use: Treatment of severe gram-negative bacterial infections (sepsis/pneumonia) when the bacteria is likely resistant to other antibiotics.

  • The combination of gentamicin and a cephalosporin or penicillin may be life-saving in the immunocompromised patient.

  • Gentamicin + penicillin G: viridans streptococcal endocarditis

  • Gentamicin + nafcillin (Nafcil, Unipen) in some cases of staphylococcal endocarditis.

  • Gentamicin should not be used as a single agent due to rapid development of resistance.

  • Aminoglycosides should not be used as single therapy in pneumonia due to poor tissue penetration.

  •  Nephrotoxicity: requires serum gentamicin monitoring if administration exceeds a few days.

  • Adverse Reactions

    • Nephrotoxicity

    • Deafness

    • Vestibular toxicity which tends to be irreversible.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 755.

• Tobramycin (Nebcin)

  • Antibacterial spectrum of action similar to gentamicin.

  • Some cross-resistance possible

  • Nearly identical pharmacokinetic profile

  • Similar antimicrobial spectum to gentamicin.

  •  Adverse Reactions

    • Nephrotoxicity

    • Deafness

    • Vestibular toxicity which tends to be irreversible.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin, in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 756-758.

•  Amikacin (Amikin)

  • Amikacin: semisynthetic derivative of kanamycin, but less toxic.

  • Amikacin may be used against microbes resistant to:

    • gentamicin or tobramycin because it is resistant to enzymes which inactivate those agents.

  • Often effective in treating multi-drug resistant strains of Mycobacterium tuberculosis.

  • Kanamycin resistant isolates are likely to exhibit cross-resistance to amikacin.

  •  Amikacin (Amikin) is ototoxic (auditory component especially) and nephrotoxic, as are all aminoglycosides.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin, in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 758.

• Kanamycin & Neomycin

  • Kanamycin & Neomycin: Active against gram-positive, gram-negative and some mycobacteria.

  •  Pseudomonas and streptococci: resistant

  • Mechanisms of action and resistance follow that of other aminoglycosides.

  •  Cross-resistance between these agents and kanamycin and neomycin

  •  Neomycin: topical and oral use only due to toxicity associated with parenteral administration.

  • Neomycin use: given prior to elective bowel surgery, reducing aerobic bowel flora.

  •  Ototoxicity (auditory) and nephrotoxicity.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin, in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 758-759.

• Spectinomycin (Trobicin)

  • Spectinomycin: structurally-related to aminoglycosides.

  • Used almost exclusively to treat gonorrhea resistant to other drugs or if the patient is allergic to penicillin.

  • No cross-resistance between spectinomycin and other drugs used to treat gonorrhea

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin, in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 759.

• The dependency of therapeutic and toxic effects on pharmacokinetics

  • Aminoglycosides are poorly absorbed from the G.I. tract

  • Most of the oral dose is excreted directly. Aminoglycosides are usually administered intravenously (i.v).

  • Highly polar molecules, aminoglycosides do not penetrate the CNS or eye.

  • In menningitis with attendant inflammation, cerebral spinal fluid levels may reach 20% of plasma concentration.

    • Higher concentration requires directly intrathecal or intraventricular administration.

  • Tissue drug levels are generally low, except in the renal cortex.

  • Renal aminoglycosides clearance rates are directly proportion to creatinine clearance rates.

  • Many factors (age, gender) influence the relationship between serum creatinine levels and creatinine clearance. Reliance on estimated creatinine clearance is appropriate in determining aminoglycoside dosage in a patient.

  •  In renal insufficiency, care must be used to avoid toxicity due to drug accumulation.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 753.

• Development of resistance to aminoglycosides

  • Most common mechanism of resistance is antibiotic inactivation by enzyme-mediated covalent modification which results in phosphate, adenyl or acetyl group transfer.

  •  Aminoglycoside-modifying enzymes are plasmid localized.

  • The modified antibiotic is also less active because of decreased transport & decreased binding to the ribosomal target site

  • Aminoglycoside-modifying enzymes have been found in both gram-negative and gram-positive bacteria.

Archer,G.L. and Polk, R.E. Treatment and Prophylaxis of Bacterial Infections, In Harrison's Principles of Internal Medicine 14th edition, (Isselbacher, K.J., Braunwald, E., Wilson, J.D., Martin, J.B., Fauci, A.S. and Kasper, D.L., eds) McGraw-Hill, Inc (Health Professions Division), 1998, p. 859.

Chambers, H.F., Hadley, W. K. and Jawetz, E. Aminoglycosides and Spectinomycin,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 752.



Tetracyclines, macrolides, chloramphenicol, clindamycin, spectinomycin

Spectrum of activity and clinical uses Specific indications for use

Return to top Menu



Inhibitors of folate-dependent pathways

Production and use of folate derivatives in bacterial systems Certain microbes require p-aminobenzoic acid (PABA) in order to synthesize dihydrofolic acid which is required to produce purines and ultimately nucleic acids. Sulfonamides,chemical analogs of PABA, are competitive inhibitors of dihydropteroate synthetase.  Sulfonamides therefore are reversible inhibitors of folic acid synthesis and bacterostatic not bacteriocidal.



Sulfonamides

Introduction to sulfonamide pharmacology  Mechanism of action of sulfonamides Certain microbes require p-aminobenzoic acid (PABA) in order to synthesize dihydrofolic acid which is required to produce purines and ultimately nucleic acids.   Sulfonamides,chemical analogs of PABA, are competitive inhibitors of dihydropteroate synthetase. Sulfonamides therefore are reversible inhibitors of folic acid synthesis and bacterostatic not bacteriocidal.



Trimethoprim

Trimethoprim (generic) mechanism of action Trimethoprim is an inhibitor of bacterial dihydrofolic acid reductase. Pyrimethamine (Daraprim) is an excellent inhibitor of dihydrofolic acid reductase in protozoa These reductases are required for the synthesis of purines and hence DNA. Inhibition of these enzymes are responsible for bacteriostatic and bacteriocidal activities. When trimethoprim or pyrimethamine is combined with sulfonamides (sulfamethoxazole) there is sequential blocking of the biosynthetic pathway leading to drug synergism and enhanced antimicrobial activity. (see figure below) Resistance to trimethoprim: usually by plasmid encoded trimethoprim-resistant dihydrofolate reductases. Trimethoprim typically used orally often in combination with sulfamethoxazole, a sulfonamide with a similar half-life. Clinical Uses Oral trimethoprim: Acute urinary tract infections Oral trimethoprim-sulfamethoxazole (Bactrim) combination: Pneumocystis carinii pneumonia, shigellosis,systemic Salmonella infection, some nontuberculous mycobacterial infections. Respiratory tract pathogens: pneumococcus, Haemophilus, Moraxella catarrhalis, Klebsiella pneumoniae By I.V. administration trimethoprim - sulfamethoxazole: agent of choice for moderately severe to severe infections with Pneumocystis carinii pneumonia, especially in patients with HIV. May be used for gram-negative sepsis Adverse effects Trimethoprim adverse effects referable to antifolate properties: megaloblastic anemia, leukopenia granulocytopenia (avoided by coadminstration of folinic acid) Combination of Trimethoprim-Sulfamethoxazole cause in addition, sulfonamide side effects--nausea, vomiting,vasculitis, renal damage.  AIDS patients being treated for pneumocystis pneumonia have a high frequency of adverse reactions, particularly fever, rash, leukopenia diarrhea. Chambers, H.F. and Jawetz, E.Sulfonamides,Trimethoprim, and Quinolones,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, p. 761-763.

DNA gyrase inhibitors

DNA gyrase inhibitors:  The function of DNA gyrases, and the effects of their inhibition; clinical uses of quinolones and fluoroquinolones; adverse effects and potential drug-drug interaction for quinolones

Antimycobacterial agents

Drugs to Treat Mycobacterial Infections

• Overview

  • Mycobacterial infections are a therapeutic challenge

  •  Slow growth characteristic results in relative resistance to antibiotic therapy. Antibiotic activity is usually directly depend on the rate of cell division

  • Many mycobacterial organisms are intracellular (residing in macrophages, for example)

  • Single drug treatment of mycobacterial infections readily promotes development of resistance

  • Combination therapy over an extended period of time is required for effective treatment.

  • Mycobacterial infections include those caused by Mycobacterium tuberculosis, M bovis, atypical myocacterial infections, and M. leprae (leprosy)

• First line of drugs in order of  preference:

  1.  Isoniazid (INH)

  2.  Rifampin (Rimactane)

  3.  Pyrazinamide

  4.  Ethambutol

  5.  spectinomycin (Trobicin)

• Second Line Drugs

  • Amikacin (Amikin)

  • Aminosalicylic Acid

  • Capreomycin

  • Ciprofloxacin (Cipro)

  • Clofazimine

  • Cycloserine

  • Ethionamide

  • Ofloxacin (Floxin)

  • Rifabutin (Mycobutin)

Mechanisms of Actions of Antimycobacterial Agents



• Isoniazid (INH)

  • Overview:

    • Isoniazid (INH) is the most active for treatment of tuberculosis.

    • INH inhibits mycolic acid synthesis, an essential part of mycobacterial cell walls.

    •  Given alone, INH administration selects out resistant mutants which necessitates additional agents.

    •  At present (1997) about 10% of tuberculosis isolates are INH resistant. INH is well absorbed after oral administration.

    • Hepatic metabolism by acetylation is influenced by genetic predisposition to fast- or slow acetylation. Dosage adjustments may be required INH metabolites are renally excreted.

• Clinical Aspects:

  • Single-drug use: prevention of active tuberculosis in M. tuberculosis infected individuals who have not developed active disease.

  •  Very young children who are seropositive within two years following a negative skin test and HIV-infected and AIDS patients are candidates for INH preventative treatment.

  •  Single drug: INH treatment is also indicated as a preventative for individuals who have been in close contact with individuals who have active pulmonary tuberculosis.

•  Adverse Effects

  • Fever, skin rash.

  • Toxicity: INH-induced hepatitis--most frequent major toxic effect (1% incidence, age-dependent with older patients at higher risk and younger patients at much reduced risk).

  • Peripheral neuropathy which is reduced by pyridoxine supplimentation

Chambers, H.F. and Jawetz, E.Antimycobacterical Drugs ,in Basic and Clinical Pharmacology,(Katzung, B. G., ed) Appleton-Lange, 1998, pp. 770 - 773

• Rifampin (Rimactane)

  • Overview:

    • Rifampin is a semisynthetic derivative of rifamycin.

    • Rifampin is active against gram-positive and gram-negative cocci, some enteric organisms, mycobacteria and Chlamydia.

    • Rifampin binds selectively to bacterial DNA-dependent RNA polymerase thus inhibiting RNA synthesis.

    • Rifampin is bacteriocidal for myobacteria.

  • Clinical Uses

    • Rifampin co-administered with isoniazid or ethambutol to treat myobacterial infections.

    • Rifampin in combination with a sulfone (dapsone) is used to treat leprosy.

    • Rifampin is a substitute for INH tuberculosis prophylaxis.

    •  Other Uses: Prophylaxis for Haemophilus influenzae type children contact

    • Rifampin with another agent to eradicate staphylococci

    • Combination therapy for serious staphylococcal infections including osteomyelitis and prosthetic valve endocarditis.

    • Rifampin in combination with ceftriaxone or vancomycin to treat meningitis caused by highly penicillin-resistant pneumococcal isolates

  • Adverse Effects

    • Harmless orange coloration to urine, sweat, tears.

    • Occasional effects: rash, nephritis, thrombocytopenia, flu-like symptoms depending on dosing intervals

    • Rifampin microsomal P450 induction increases the metabolism of many drugs

• Antimycobacterial agents  Membrane Structure

• Clinical Uses of Antibacterials (for management of gram positive organisms)

Return to top Menu
