Autonomic Pharmacology--Introduction-Lecture II, slide 1

press above to begin the lecture


return to Pharmacology Table of Contents

Table of Contents
  • ANS Anatomy
    • Autonomic and Somatic Innervation
    • Autonomic Reflex Arc
    • Autonomic Reflex Arc: First Link
    • Sensory Fiber Neurotransmitter(s)
    • Autonomic Nervous System Neurotransmitters: Summary
    • CNS and the Autonomic Nervous System
      • Spinal Cord Reflexes
      • Hypothalamus and Nucleus tractus solitarii
      • Higher Centers
    • Peripheral ANS Divisions
  • Comparison between Sympathetic & Parasympathetic Systems
  • Sympathetic Nervous System Anatomy
    • Diagram Sympathetic System
    • Anatomical Outline
      • Paravertebral Ganglia
      • Prevertebral Ganglia
      • Terminal Ganglia
      • Adrenal Medulla
  • Parasympathetic System Anatomy
  • ANS Neurotransmitter Effector Organs
  • Eye
  • Heart
  • Arterioles
  • Systemic Veins
  • Lung


  • Skin
  • Adrenal Medulla
  • Skeletal Muscle
  • Liver
  • Posterior Pituitary


  • Interactions between Sympathetic & Parasympathetic Systems
  • "Fight or Flight": Characteristics of the ANS
  • ANS Neurotransmission
    • Neurotransmitter Criteria
    • Neurotransmission Steps:
      • Axonal Conduction
      • Storage and Release of Neurotransmitter
      • Combination of Neurotransmitter and Post-Junctional Receptors
      • Termination of Neurotransmitter Action
      • Other Non-electrogenic Functions
    • Cholinergic Neurotransmission
      • Transmitter Synthesis and Degradation
      • Acetylcholinesterase
      • Acetylcholine: Storage and Release
      • Site Differences:
        • Skeletal Muscle
        • Autonomic Effectors
        • Autonomic Ganglia
        • Blood vessels
      • Signal Transduction: Receptors
  • Adrenergic Transmitters: Biosynthetic Pathways
  • Adrenergic Neurotransmission: Introduction to the Neurotransmitters
  • Catecholamine Synthesis, Storage, Release and Reuptake
    • Enzymes
    • Catecholamine storage
    • Regulation of adrenal medullary catecholamine levels
    • Reuptake
    • Metabolic Transformation
    • Indirect-acting sympathomimetics
    • Release
  • Adrenergic Receptor Subtypes
    • -adrenergic receptors
    • Alpha-adrenergic receptors
    • Catecholamine Refractoriness
  • Other Autonomic Neurotransmitters
    • Co-transmission
      • ATP
      • VIP
      • Neuropeptide Y family
    • Purines
    • Nitric Oxide (Modulator)
  • Predominant Sympathetic/Parasympathetic Tone
  • Baroreceptor Reflexes
  • Pharmacological Modification of Autonomic Function
  • Autonomic Dysfunction


Return to Table of Contents


Signal Transduction (Cholinergic)

Nicotinic Receptors

  • Ligand-gated ion channels
  • Agonist effects blocked by tubocurarine
  • Receptor activation results in:
    • rapid increases of Na+ and Ca2+ conductance
    • depolarization
    • excitation
  • Subtypes based on differing subunit composition: Muscle and Neuronal Classification


Muscarinic Receptors

  • G-protein coupled receptor system
  • Slower responses
  • Agonist effects blocked by atropine
  • At least five receptor subtypes have been described by molecular cloning. Variants have distinct anatomical locations and differing molecular specificities
Lefkowitz, R.J, Hoffman, B.B and Taylor, P. Neurotransmission: The Autonomic and Somatic Motor Nervous Systems, In, Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp.112-137

Return to Table of Contents



Adrenergic Neurotransmission: Introduction to the Neurotransmitters
  • Norepinephrine: transmitter released at most postganglionic sympathetic terminals
  • Dopamine: major CNS neurotransmitter of mammalian extrapyramidal system and some mesocortical and mesolimbic neuronal pathways.
  • Epinephrine: most important hormone of the adrenal medulla

Return to Table of Contents

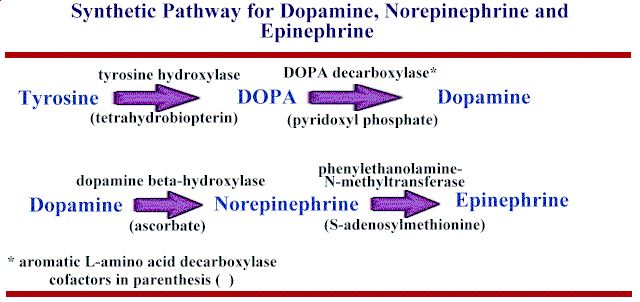

Catecholamine Synthesis, Storage, and Release

Some Enzymes in the Catecholamine Biosynthetic Pathway

Aromatic L-amino acid decarboxylase (DOPA decarboxylase)

  1. dopa leads to dopamine
  2. methyldopa leads to a-methyldopamine (converted by dopamine hydroxylase to the "false transmitter" alpha-norepinephrine)
  3. 5-hydroxy-L-tryptophanleads to5-hydroxytryptamine (5-HT)

Return to top menu

Tyrosine Hydroxylase

  1. tyrosine leads to DOPA
  2. rate limiting step in pathway
  3. tyrosine hydroxylase is a substrate for cAMP-dependent and Ca2+ - calmodulin-sensitive protein kinase and protein kinase C
  4. Increased hydroxylase activity is associated with the phosphorylated enzyme

Return to Table of Contents


Catecholamine Storage
  • In adrenergically innervated tissue: norepinephrine is localized in post-ganglionic nerve terminals

    • large dense core vesicles (corresponding to chromaffin granules)

    • small dense core vesicles (containing norepinephrine, ATP, and membrane-bound dopamine -hydroxylase

  • In the adrenal medulla, catecholamines are localized in chromaffin granules.

  • The most abundant catecholamine in the adrenal medulla is epinephrine.

  • The adrenal medulla has two cells types containing catecholamines:

    •  one type contains mainly norepinephrine

    •  the second type contains mainly epinephrine.

  • Epinephrine-containing cells express cytoplasmic phenylethanolamine-N-methyl transferase, allowing conversion of norepinephrine to epinephrine.

    •  Norepinephrine:

      1. synthesized in granules

      2. diffuses out, is methylated in the cytoplasm to epinephrine

      3. then reenters the chromaffin granules.

  •  About half of dopamine is formed in sympathetic neuronal cytoplasm is actively translocated into dopamine -hydroxylase-containing vesicles, where the final step, conversion to norepinephrine occurs.

    • The remaining dopamine is converted to homovanillic acid.

Return to Table of Contents


Regulation of Adrenal Medullary Catecholamine Levels
  • An important factor controlling the rate of epinephrine synthesis and adrenal medullary epinephrine concentration is glucocorticoid concentration.
  • Glucocorticoids:
    1.  are secreted by the adrenal cortex
    2.  are carried by an intra-adrenal portal vascular system to the adrenal medullary chromaffin cells
    3.  induce synthesis of phenylethanolamine-N-methytransferase.
    4.  also increase levels of tyrosine hydroxylase and dopamine -hydroxylase.

    Stress leads to increased corticotropin leads to increased cortisol, increased epinephrine

Return to Table of Contents

  • Following release from adrenergic nerve endings, termination of norepinephrine effect is mainly due to reuptake into presynaptic terminals.
  • In tissues with wide synaptic gaps and in blood vessels, the effect of released norepinephrine is ended by:
    1. enzymatic breakdown
    2. diffusion away from receptors
    3. extraneuronal uptake.
  • Neuronal norepinephrine reuptake requires two systems:
    •  a transport system that translocates norepinephrine from extraneuronal spaces into cytoplasm.
    •  a transport system that translocates norepinephrine from the cytoplasm into vesicles.
  • Translocation of norepinephrine from extraneuronal spaces (uptake I) into the cytoplasm is blocked by:
    1.  cocaine
    2.  tricyclic antidepressants (e.g. imipramine (Tofranil))
Imipramine (Tofranil) : Tricyclic Antidepressant
  • Inhibits norepinephrine and serotonin reuptake
  • Anticholinergic properties
  • Antihistaminic properties
  • Orthostatic hypotension due to alpha receptor blockade
  • Sedation
  • Mild analgesic

Labeled Uses

  • Endogenous depression (an serotonin-specific reuptake inhibitor (SSRI) or other second generation agent is likely to be used first)
  • Occasionally, reactive depression
  • Treatment of enuresis in children older than six.
Shannon, M.T., Wilson, B.A., Stang, C. L. In, Govoni and Hayes 8th Edition: Drugs and Nursing Implications Appleton & Lange, 1995, pp. 616-619

Return to Table of Contents

Mechamisms of Indirect Acting Sympathomimetics
  • An indirect acting sympathomimetic acts mainly by promoting norepinephrine release from nerve terminals.
  • Mechanism: These amines, all substates for uptake I, act by:
    • competing with noradrenergic vesicular transport systems, thus making norepinephine more available for release.
  • Indirect-acting agents, such as tyramine, produce tachyphylaxis in which repetitive doses of tyramine results in a progressively diminishing response.
    • Tachyphylaxis may result from depletion of a small pool of vesicular norepinephrine residing near the presynaptic membrane.
  • Uptake II is an extraneuronal (glia, heart, liver, etc )amine translocator that exhibits low affinity for norepinephrine and higher affinities for epinephrine and isoproterenol. This system is of limited physiological significance, unless Uptake I is blocked.

Return to Table of Contents


Metabolic Transformation
  • Besides reuptake and diffusion away from receptor sites, catecholamine action can end due to metabolic transformation.
Two primary degradative enzymes:
Monoamine Oxidase (MAO) Catechol-O-Methyl Transferase (COMT)
  • Inhibitors of MAO, such as pargyline, phenelzine (Nardil), and tranylcypromine (Parnate) increase norepinephrine, dopamine, and serotonin (5-HT) brain concentrations.
    • These concentration increases may be responsible for antidepressant action of MAO inhibitors.
Monoamine Oxidase Inhibitor: Phenelzine [Nardil]
  • Hydrazine MAO inhibitor with amphetamine-like activity
  • Termination of drug action requires new MAO synthesis
  • May cause Hypertensive crisis
Labeled Uses
  • treatment of endogenous depression
  • management of depressive phase of bipolar disorder
  • treatment of severe reactive depression not responsive to other drugs.


Shannon, M.T., Wilson, B.A., Stang, C. L. In, Govoni and Hayes 8th Edition: Drugs and Nursing Implications Appleton & Lange, 1995, pp. 904-905


Return to Table of Contents


Catecholamine Release (Adrenal medulla)
Release steps: Chromaffin Granule Adrenal medulla
preganglion fiber releases Ach nicotinic receptor activationdepolarizationCa2+ entry exocytosis of granular content
  • Ca2+ influx is important in excitation (depolarization)--release coupling
Lefkowitz, R.J, Hoffman, B.B and Taylor, P. Neurotransmission: The Autonomic and Somatic Motor Nervous Systems, In, Goodman and Gillman's The Pharmacologial Basis of Therapeutics,(Hardman, J.G, Limbird, L.E, Molinoff, P.B., Ruddon, R.W, and Gilman, A.G.,eds) TheMcGraw-Hill Companies, Inc.,1996, pp.112-137


-adrenergic receptors
Order of agonist potency

Isoproterenol > epinephrine > norepinephrine

  • -receptors are divided into two major categories: 1 and 2.
    • 1 receptors myocardium.
    • 2 receptors smooth muscle and most other sites.
  • The subdivision of beta receptors followed from the observation that in the heart norepinephrine and epinephrine were equipotent, whereas epinephrine was many fold (10 - 50) more potent at smooth muscle.
  • A 3 receptor has been found that is strongly activated by norepinephrine compared to epinephrine and may explain "atypical" pharmacological properties of adipose tissue. The 3 -receptor is not blocked by propranolol, classified as a non selective beta-receptor blocker.
  • Activation of 1, 2 and 3 receptors increases adenylyl cyclase activity (Gs mediated) resulting in a rise of intracellular cAMP.
    • Cardiac inotropic effects result from increases in Ca2+ concentration, due to:
      • phosphorylation of L-type Ca2+ channels
      • phosphorylation of sarcolemmal Ca2+ pumps
      • direct action Gs action on the L-type channel
    • Effects on the liver lead to activation of glycogen phosphorylation
  • 2 receptor activation mediates relaxation of vascular smooth muscle
  •  2 receptor activation mediates relaxation of G.I. smooth muscle. alpha2 adrenergic receptor activation acts presynaptically to reduce Ach release and promote G.I. smooth muscle relaxation. The alpha2 receptor effect is the more important.

Return to Table of Contents


Alpha Adrenergic Receptors
Order of agonist potency

epinephrine > norepinephrine >> isoproterenol

  • Multiple alpha receptor subtypes have been identified.
  • Multiple forms were suggested when, after administration of an alpha-receptor antagonist, repetitive nerve stimulation resulted in increasing amount of norepinephrine release. This findings suggested a presynaptic alpha-receptor binding site.
  • Post-synaptic receptors alpha1 .
  • Pre-synaptic receptors alpha2 .
  • Alpha2 receptors are also present post-synaptically. This site is involved in the action of some centrally-acting antihypertensive agents, e.g. clonidine.
  • Some drugs, such as clonidine are more active at alpha2 receptors.
    Clonidine (Catapres)
    •  Clonidine acts in the brain at post-synaptic alpha2 receptors, inhibiting adrenergic outflow from the brainstem. Inhibition of sympathetic outflow results in a decrease in blood pressure.
    • Clonidine reduces cardiac output (by reducing both stroke volume and heart rate) and peripheral resistance. Reduction in stoke volume occurs due to increased venous pooling (decreased preload).
    • Clonidine does not interfere with cardiovascular responses to exercise.
    • Renal blood flow and function is maintained during clonidine treatment.
    • Clonidine has minimal or no effect on plasma lipids.


     Adverse Effects
    • Dry Mouth (xerostomia)
    • bradycardia (in patients with SA nodal abnormality)
    • Withdrawal syndrome upon abrupt discontinuation (increased blood pressure, headache, tachycardia, apprehension, tremors)
  • Some drugs such as methoxamine (Vasoxyl) or phenylephrine (Neo-Synephrine) are more active at alpha1 receptors.
  • Multiple forms of both alpha1 and alpha2 receptors have been identified.

Return to Table of Contents
